| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance - Center | |
| Contact Resistance - Outer | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Disengagement Force | |
| Engagement Force | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Power Handling | |
| Shield Termination | |
| Working Voltage | |
| screening_effectiveness (Minimum @ 3 to 6 GHz) | |
| screening_effectiveness (Minimum @ DC to 3 GHz) |

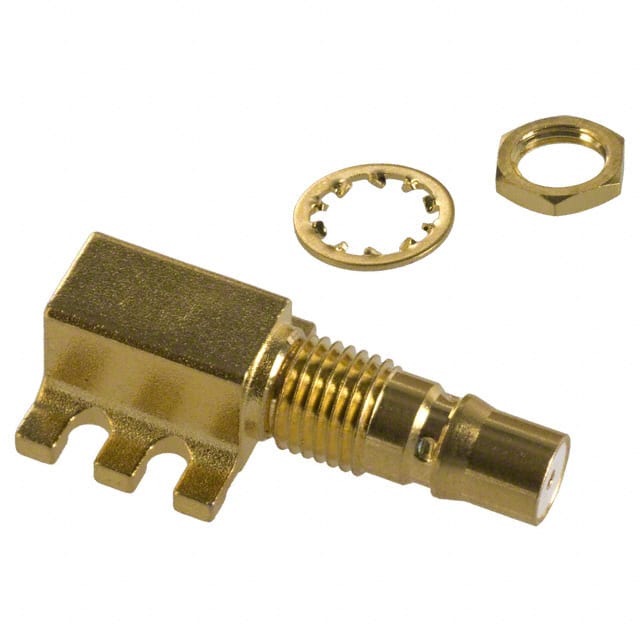

The 930-111J-51P is a QMA receptacle with a female socket contact, designed for 50 Ohm impedance RF applications up to 6 GHz. It features a right angle body style and supports both surface mount and through hole mounting with a bulkhead front side nut mounting feature. The snap-on fastening mechanism enables quick and easy mating without the need for wrench clearance, saving space in dense PCB layouts.
Electrical specifications include a dielectric withstanding voltage of 1000 V RMS, working voltage up to 480 V RMS, and typical power handling of 150 W at 2.5 GHz. Contact resistance is 3.0 mOhm maximum for the center contact and 2.5 mOhm maximum for the outer contact. The connector provides screening effectiveness of -80 dB minimum from DC to 3 GHz and -70 dB minimum from 3 to 6 GHz.
The housing is gold plated, and the center contact is made of beryllium copper. Both contact and shield terminations are solder type. The connector is rated for a minimum of 100 mating cycles with typical engagement force of 25 N and disengagement force of 20 N. Operating temperature range is -40 to +85 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.34 | $26.34 |
| 10+ | $22.38 | $22.38 |
| 25+ | $20.98 | $20.98 |
| 50+ | $19.98 | $19.98 |
| 100+ | $19.03 | $19.03 |
| 200+ | $17.78 | $17.78 |
| 400+ | $16.93 | $16.93 |
| 600+ | $16.45 | $16.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
6 GHz.
Surface mount, right angle, and through hole.
-40 to +85 °C.
100 cycles minimum.
