| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Weight | |
| Wire Size - Maximum |

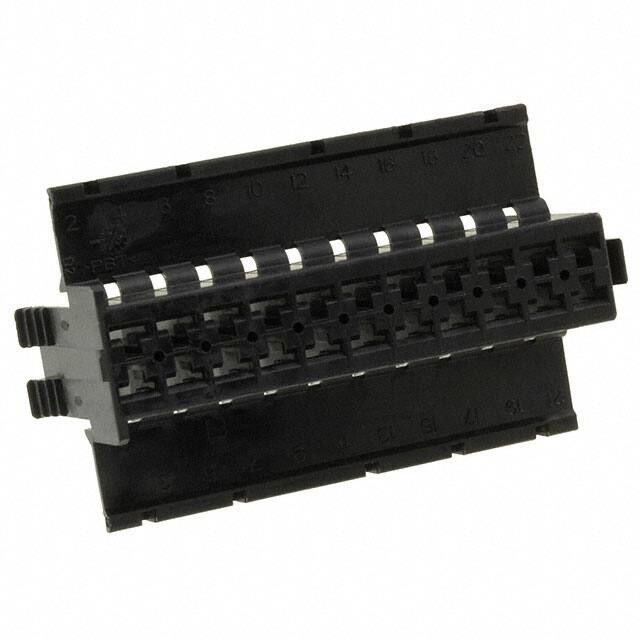

The TE Connectivity 929504-7 is a 22-position receptacle housing from the Junior Power Timer series. It features 2 rows with a 5.00mm pitch and 5.60mm row spacing. The housing is free hanging (in-line) and accepts female socket contacts (TE PN 1355046) via crimp termination. It is made of black PBT material and weighs 9.3 grams. The maximum allowed wire size is 2.5mm² FLR. This housing mates with the 929505 (2.8mm FF TAB-HOUSING) or with headers 828801 (90°) and 963357 (180°). It is designed for use in automotive and industrial wiring applications requiring a compact, reliable connection system.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
| 10+ | $1.12 | $1.12 |
| 25+ | $1.05 | $1.05 |
| 50+ | $1.00 | $1.00 |
| 100+ | $0.95 | $0.95 |
| 440+ | $0.86 | $0.86 |
| 880+ | $0.82 | $0.82 |
| 1,320+ | $0.79 | $0.79 |
| 2,640+ | $0.76 | $0.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions in 2 rows.
5.00mm (0.197 inches).
Free hanging (in-line).
2.5mm² FLR.
Black PBT.
9.3 grams.
5.60mm (0.220 inches).
