| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,704 pcs
|
1704 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,071 pcs
|
1071 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Lead Spacing | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Weight | |
| Wire Gauge Max |

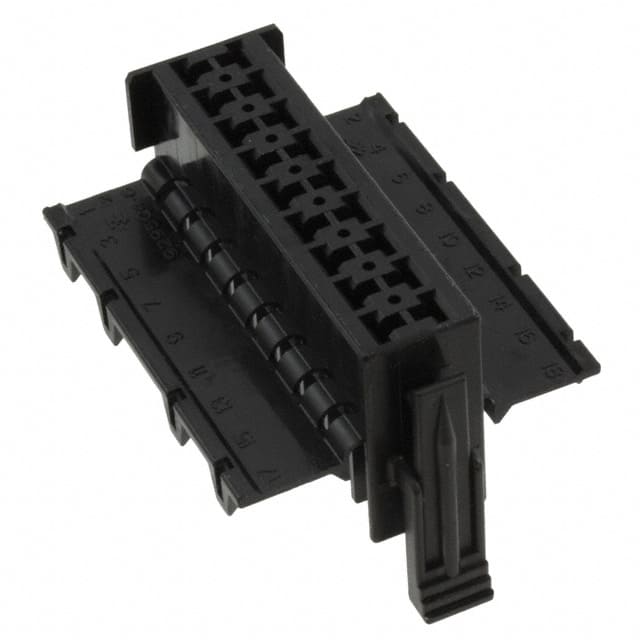

The 929504-6 is a 18-position, 2-row rectangular connector housing from TE Connectivity's Junior Power Timer (JPT) series. Designed as a receptacle housing for wire-to-wire connections, it uses crimp termination with female socket contacts.
The housing features a 5.00mm pitch and 5.60mm row spacing, with free hanging (in-line) mounting. It is made of black PBT material and weighs approximately 7.7g. The maximum allowed wire size is 2.5mm², and the operating temperature range is -40°C to 125°C.
This housing is suitable for use with TE Junior Power Timer contacts (see drawing PN 1355046) and mates with the 929505 header housing. Typical applications include automotive and industrial power distribution and signal circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
| 10+ | $1.15 | $1.15 |
| 25+ | $1.08 | $1.08 |
| 50+ | $1.02 | $1.02 |
| 100+ | $0.98 | $0.98 |
| 250+ | $0.92 | $0.92 |
| 560+ | $0.86 | $0.86 |
| 1,120+ | $0.82 | $0.82 |
| 2,800+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions arranged in 2 rows.
The pitch is 5.00mm (0.197 inches).
Free hanging (in-line) mounting.
The maximum wire size is 2.5mm².
-40°C to 125°C (typical for TE JPT series).
Crimp termination for female socket contacts.
