| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,650 pcs
|
1650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Lead Spacing | |
| Material | |
| Mating Part | |
| Maximum Wire Size | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Overall Length | |
| Overall Width | |
| Pitch | |
| Row Spacing | |
| Suitable Contacts | |
| Weight |

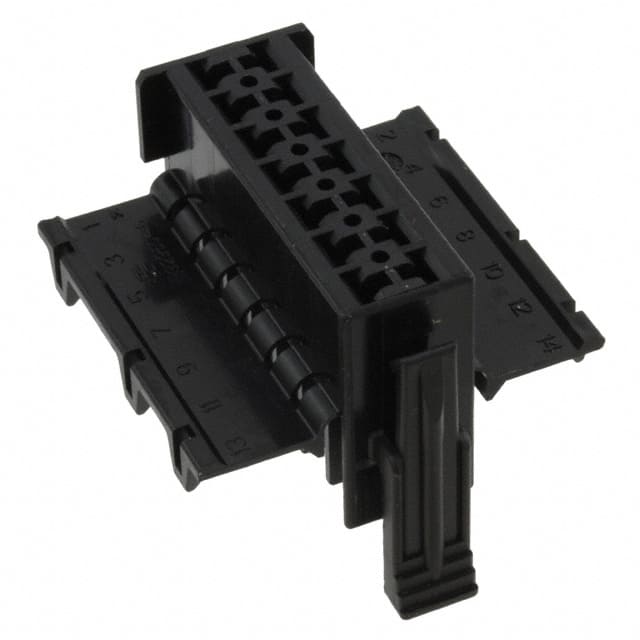

The TE Connectivity 929504-5 is a 14-position receptacle housing from the Junior Power Timer series. It features two rows with a 5.00mm pitch and 5.60mm row spacing, designed for free hanging (in-line) applications. The housing is made from black PBT material and weighs 6.2g.
This connector housing accepts wire sizes up to 2.5mm² FLR and is compatible with Junior Power Timer contacts (part number 1355046). The mating counterpart is the 929505 header.
Dimensions: overall length 57.0mm, overall width 16.5mm. The housing supports crimp-type contact termination, making it suitable for automated wire harness assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.02 | $1.02 |
| 10+ | $0.87 | $0.87 |
| 25+ | $0.81 | $0.81 |
| 50+ | $0.77 | $0.77 |
| 100+ | $0.74 | $0.74 |
| 250+ | $0.69 | $0.69 |
| 800+ | $0.63 | $0.63 |
| 1,600+ | $0.60 | $0.60 |
| 3,200+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in 2 rows.
5.00mm pitch with 5.60mm row spacing.
Free hanging (in-line) mounting.
Maximum wire size is 2.5mm² FLR.
Suitable contacts are TE Connectivity Junior Power Timer contacts with part number 1355046.
The mating header is TE Connectivity part number 929505.
