| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

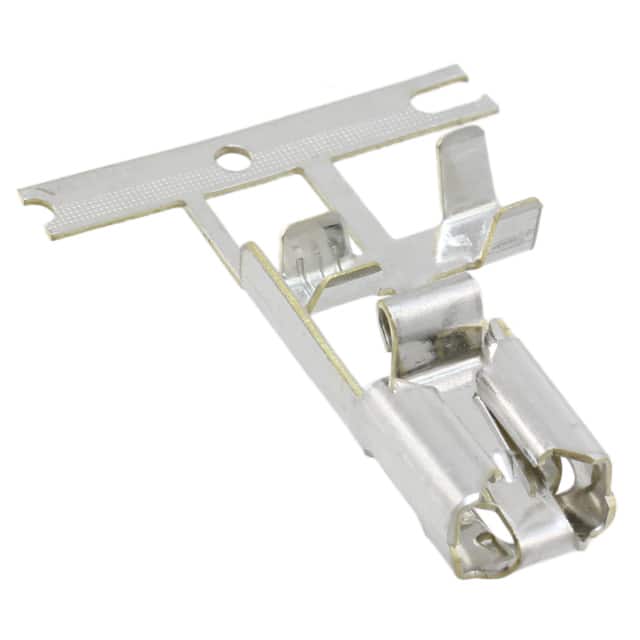

The TE Connectivity 926820-4 is a non-insulated flag-style quick disconnect receptacle designed for reliable wire-to-tab connections. It accepts 15.5-20 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) tab thickness. The right-angle flag configuration allows for space-saving inline mounting.
The terminal uses a crimp termination style and is constructed from tin-plated brass for good conductivity and corrosion resistance. As a non-insulated part, it is suitable for applications where insulation is not required or where additional insulation is applied separately.
This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in power distribution, appliance wiring, and automotive electrical systems where quick disconnect functionality is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.34 | $0.34 |
| 10+ | $0.29 | $0.29 |
| 25+ | $0.27 | $0.27 |
| 50+ | $0.26 | $0.26 |
| 100+ | $0.24 | $0.24 |
| 250+ | $0.23 | $0.23 |
| 500+ | $0.22 | $0.22 |
| 1,500+ | $0.20 | $0.20 |
| 3,000+ | $0.19 | $0.19 |
| 4,500+ | $0.19 | $0.19 |
| 7,500+ | $0.18 | $0.18 |
| 10,500+ | $0.18 | $0.18 |
| 15,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 926820-4 accepts 15.5-20 AWG wire.
The tab width is 0.250" (6.35mm).
No, the 926820-4 is non-insulated.
The termination style is crimp.
Free hanging (in-line), right angle.
