| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

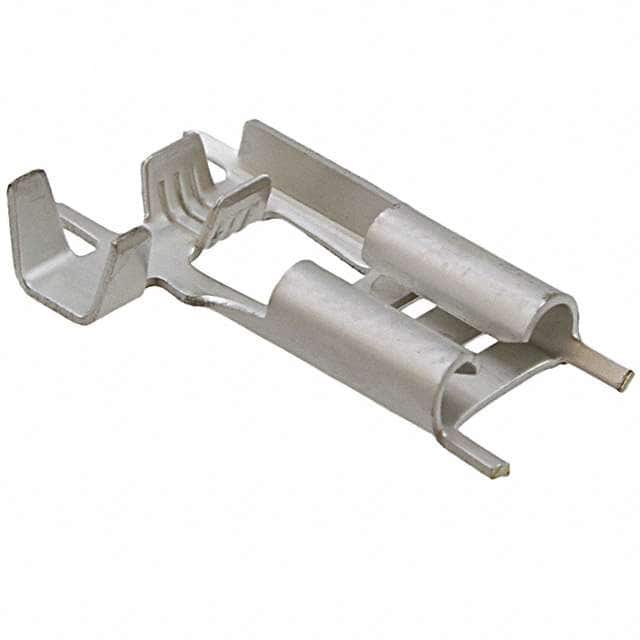

The TE Connectivity 1-280050-2 is a non-insulated female flag quick disconnect terminal designed for 15.5-20 AWG wire. It features a 0.250" (6.35mm) tab width, 0.299" (7.60mm) tab length, and 0.032" (0.81mm) tab thickness. The terminal is angled 90° (flag style) and mounts free hanging (in-line) with a right-angle orientation. Termination is via crimp, ensuring a secure mechanical and electrical connection. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. This terminal is suitable for applications requiring a reliable, quick-connect/disconnect interface in a space-constrained layout.
It accepts 15.5-20 AWG wire.
The tab width is 0.250" (6.35mm).
No, it is non-insulated.
Crimp termination.
Free hanging (in-line), right angle.
Brass contact with tin finish.
