| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Lead Spacing | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination Style |

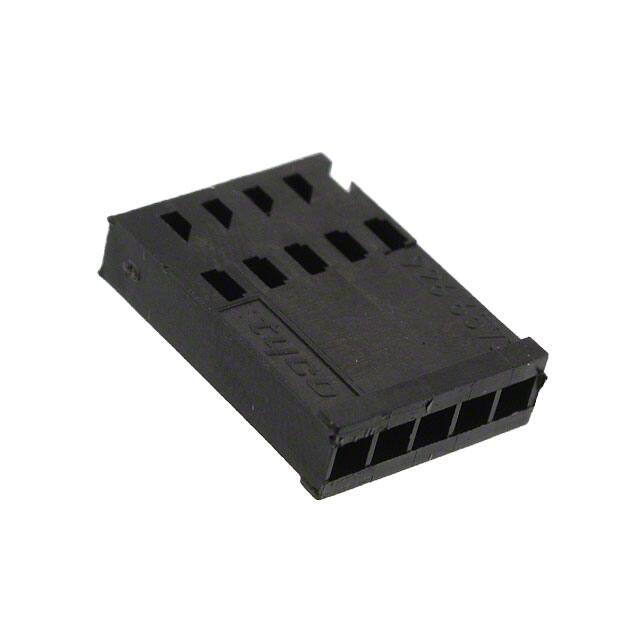

The TE Connectivity 926657-5 is a 5-position receptacle housing from the Locking Clip series. It is designed for 2.54mm (0.100") pitch applications and features a single row of female socket contacts. The housing is constructed from black PBT with 15% glass fiber reinforcement, offering durability and a wide operating temperature range of -65°C to 105°C. The housing is free hanging (in-line) and uses crimp termination for the contacts. This component is commonly used in wire-to-board or wire-to-wire connections requiring a compact, reliable housing. The housing features a stackable design, allowing multiple units to be assembled side by side for increased position count.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.84 | $1.84 |
| 10+ | $1.56 | $1.56 |
| 25+ | $1.47 | $1.47 |
| 50+ | $1.40 | $1.40 |
| 100+ | $1.33 | $1.33 |
| 250+ | $1.25 | $1.25 |
| 500+ | $1.19 | $1.19 |
| 1,000+ | $1.13 | $1.13 |
| 3,000+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 926657-5 has 5 positions.
The pitch is 2.54mm (0.100").
The mounting type is Free Hanging (In-Line).
The operating temperature range is -65°C to 105°C.
The housing is made of PBT with 15% glass fiber (PBT 15% GF).
It uses crimp termination.
It accepts female socket contacts.
