| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Color | |
| Compatible Insulation Diameter Range | |
| Connector Type | |
| Contact Base Material | |
| Contact Mating Area Plating Material | |
| Contact Retention Type Within Housing | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Mating Pin Diameter | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Method | |
| Packaging Quantity | |
| Termination Method to Wire & Cable | |
| Wire size |

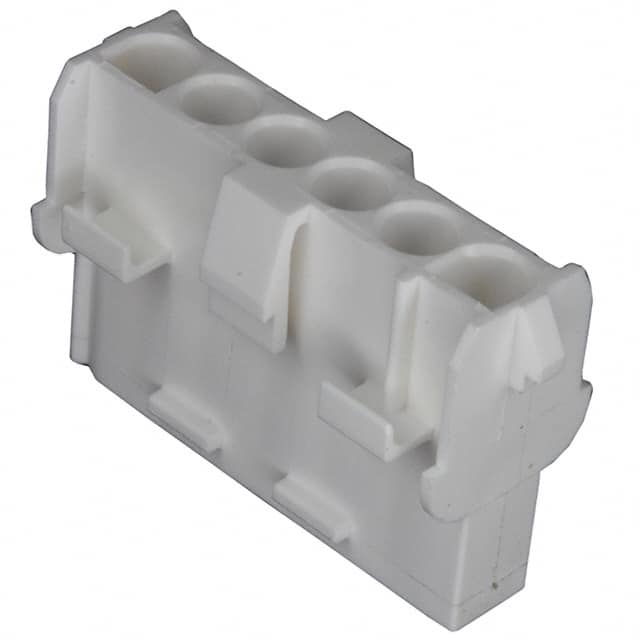

The TE Connectivity 926307-3 is a 6-position receptacle housing from the Universal MATE-N-LOK series. It features a single row of positions and accepts male or female contacts with a 2.06 mm mating pin diameter. The housing uses a locking ramp fastening type and a locking lance contact retention mechanism.
The housing is designed for panel mount, snap-in installation and supports crimp termination. It accommodates wire sizes from 1.31 to 2.63 mm² and compatible insulation diameters from 3.3 to 5.08 mm. The contact mating area is plated with tin, and the contact base material is phosphor bronze.
This housing is rated for operating temperatures from -55°C to 105°C. It is packaged in a box of 1000 pieces. The part is compliant with EU RoHS, REACH, ELV, China RoHS, and is low halogen.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.59 | $1.59 |
| 10+ | $1.35 | $1.35 |
| 25+ | $1.26 | $1.26 |
| 50+ | $1.20 | $1.20 |
| 100+ | $1.14 | $1.14 |
| 250+ | $1.07 | $1.07 |
| 500+ | $1.02 | $1.02 |
| 1,200+ | $0.96 | $0.96 |
| 3,600+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
Panel mount, snap-in.
Crimp termination.
-55°C to 105°C.
1.31 to 2.63 mm² wire size.
1000 pieces per box.
