| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Application | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Layout | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Glow Wire Rating | |
| Halogen Free | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Packaging Method | |
| Packaging Quantity | |
| Panel Thickness | |
| Pitch | |
| Sealable | |
| Termination Method | |
| UL Flammability Rating |

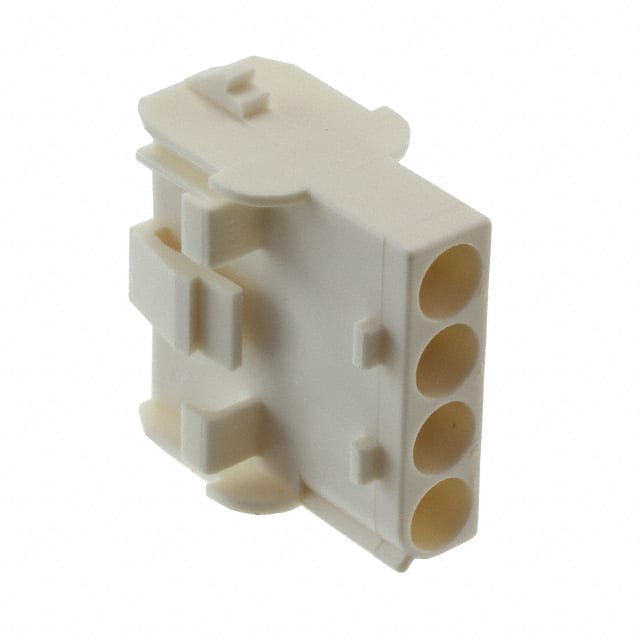

The TE Connectivity 926305-6 is a Universal MATE-N-LOK series rectangular power connector housing. It is a receptacle-style housing designed for wire-to-panel or wire-to-wire applications, accepting female socket contacts (sold separately). The housing features 4 positions in a single row with a 6.35 mm (0.250 inch) centerline pitch.
Key specifications include a panel mount with snap-in latches for secure mechanical attachment, a natural color PA 6 housing material with UL 94V-2 flammability rating, and support for panel thicknesses from 0.76 to 2.29 mm. The operating temperature range is -55°C to 125°C, and the housing is rated for 600 VAC. It is not sealable and is suitable for power and signal circuit applications.
Termination to wire is via crimp contacts (not included). The housing is non-sealable and does not include contact retention features. It is RoHS and REACH compliant (SVHC-free) but is not halogen-free. Packaging is in bags of 2000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.89 | $0.89 |
| 25+ | $0.84 | $0.84 |
| 50+ | $0.80 | $0.80 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.71 | $0.71 |
| 500+ | $0.68 | $0.68 |
| 2,000+ | $0.61 | $0.61 |
| 4,000+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions in a single row.
The pitch is 6.35 mm (0.250 inches).
The operating voltage rating is 600 VAC.
It is a panel mount housing with snap-in latch features.
The housing is made of PA 6 and has a UL 94V-2 flammability rating.
