| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 50 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Circuit Application | |
| Color | |
| Connector Height | |
| Connector Length | |
| Connector Mounting Type | |
| Connector System | |
| Connector Type | |
| Connector Width | |
| Contact Current Rating (Max) | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Halogen Content | |
| Housing Entry Configuration | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Retention | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Product Type | |
| Row Spacing | |
| SVHC Present | |
| Sealable | |
| UL Flammability Rating |

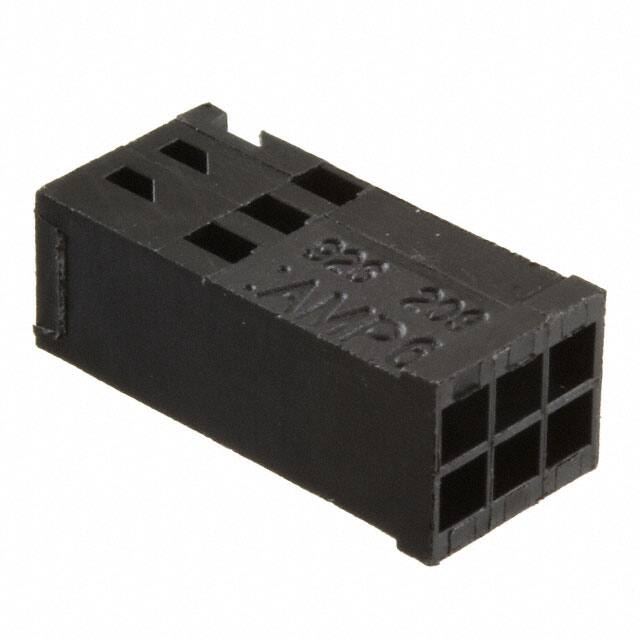

The TE Connectivity 926209-3 is a receptacle housing from the AMPMODU LOCKING CLIP series, designed for wire-to-board signal applications. It features 6 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The housing accepts female socket contacts terminated via crimp, and is intended for free-hanging (in-line) cable mounting.
Constructed from black PBT GF (glass-filled) material, the housing is rated UL 94V-0 for flammability. It has a both-ends-closed entry configuration and does not include mating retention features. The operating temperature range is -65°C to 105°C, with a maximum contact current rating of 3 A.
Packaged in boxes of 8400 units, this housing is suitable for high-volume assembly. It is RoHS, REACH, and ELV compliant, and is not sealable or low halogen.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 10+ | $2.03 | $2.03 |
| 25+ | $1.90 | $1.90 |
| 50+ | $1.81 | $1.81 |
| 100+ | $1.73 | $1.73 |
| 250+ | $1.62 | $1.62 |
| 500+ | $1.54 | $1.54 |
| 1,000+ | $1.47 | $1.47 |
| 2,500+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 6 positions arranged in 2 rows.
The maximum contact current rating is 3 A.
Free hanging (in-line) cable mount.
-65°C to 105°C.
