| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
248 pcs
|
248 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Approval Agency | |
| Center Contact Captivation | |
| Center Contact Plating | |
| Center Contact Resistance | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Coupling Mechanism | |
| Dielectric Withstanding Voltage | |
| Engagement Force (Typical @ Full Detent) | |
| Engagement Force (Typical @ Smooth Bore) | |
| Fastening Type | |
| Frequency | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Maximum @ f(GHz) | |
| Insulation Resistance | |
| Mating Cycles (Minimum @ Full Detent) | |
| Mating Cycles (Minimum @ Smooth Bore) | |
| Mounting Type | |
| Outer Contact Resistance | |
| Power Handling | |
| RF Leakage | |
| Return Loss (Maximum @ Edge Mount PCB, 10 – 26.5 GHz) | |
| Return Loss (Maximum @ Edge Mount PCB, 26.5 – 40 GHz) | |
| Return Loss (Maximum @ Edge Mount PCB, DC – 10 GHz) | |
| Style | |
| insertion_loss (Maximum @ 1 GHz) |

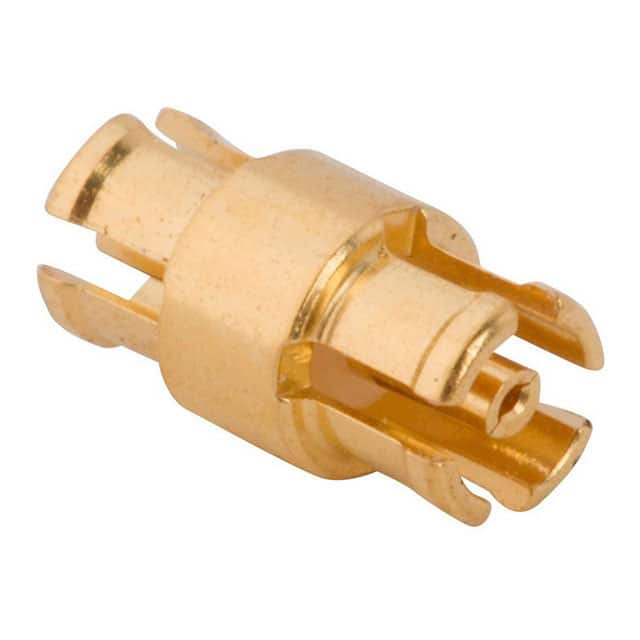

The 925-106A-51S from Amphenol RF is a micro-miniature SMPM same-series adapter designed for high-frequency coaxial interconnect applications. This straight adapter features jack to jack (female to female) contacts with a 50 Ohm impedance and is capable of operation from DC to 26.5 GHz typical, with extended performance up to 65 GHz as noted in the datasheet. Electrical characteristics include a maximum insertion loss of 0.1 dB at 1 GHz, return loss better than -23 dB up to 10 GHz, and a dielectric withstanding voltage of 325 V. The center contacts are gold plated, and the coupling mechanism is snap-on (push-on) on both sides, providing quick and secure mating. The free-hanging (in-line) mounting style makes it suitable for cable-to-cable or cable-to-board connections where space is limited. Typical applications include antenna systems, back plane connections, broadband, wireless infrastructure, military equipment, and instrumentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.33 | $22.33 |
| 10+ | $18.97 | $18.97 |
| 25+ | $17.79 | $17.79 |
| 50+ | $16.94 | $16.94 |
| 100+ | $16.13 | $16.13 |
| 300+ | $14.93 | $14.93 |
| 500+ | $14.40 | $14.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line) mounting type.
The dielectric withstanding voltage is 325 V (maximum).
50 Ohm.
DC to 26.5 GHz typical, with extended performance up to 65 GHz.
Female to Female (jack to jack).
Snap-On coupling on both sides.
Gold plating.
