| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
589 pcs
|
589 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

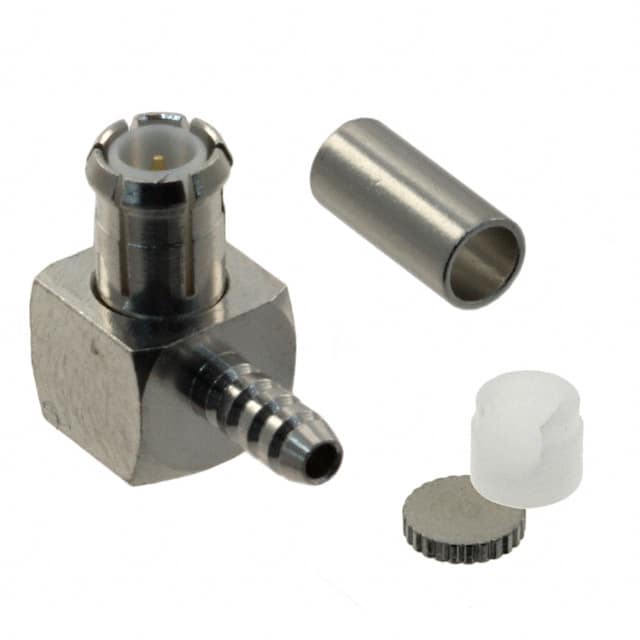

The Amphenol RF 919-NM122P-51A is an MCX series coaxial connector designed as a plug with male pin contact. It features a right angle, free hanging (in-line) mounting style with snap-on fastening. The connector offers 50 Ohm impedance and supports frequencies up to 6 GHz. Contact termination is solder, while shield termination is crimp. The center contact is made of beryllium copper, and the housing is silver colored. This connector is compatible with cable groups RG-178, 178A, 178B, 196, 196A, and M17/93-RG178. It is non-magnetic and RoHS3 compliant (unverified). The connector is suitable for RF applications requiring a compact, right-angle interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.06 | $18.06 |
| 10+ | $15.35 | $15.35 |
| 25+ | $14.38 | $14.38 |
| 50+ | $13.70 | $13.70 |
| 100+ | $13.04 | $13.04 |
| 250+ | $12.23 | $12.23 |
| 500+ | $11.64 | $11.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
MCX.
50 Ohm.
Up to 6 GHz.
Free hanging (in-line), right angle.
RG-178, 178A, 178B, 196, 196A, M17/93-RG178.
Yes.
Snap-on.
