| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Diameter (Max) | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge Range |

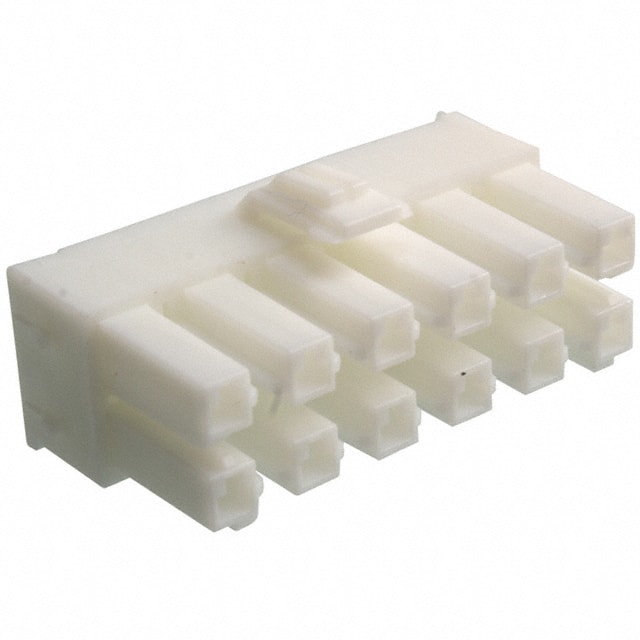

The TE Connectivity 917354-1 is a plug housing for the Power Double Lock (PDL) connector system. It is a free hanging (in-line) housing with 12 positions arranged in 2 rows at a 6.50mm pitch and row spacing. The housing accepts female socket contacts with crimp termination, suitable for 26-16 AWG wire with insulation diameters up to 3.1mm. The connector is rated up to 14A per line and operates over a temperature range of -30°C to 105°C. The natural color housing features a latch lock fastening mechanism for secure mating. The Power Double Lock series is designed for wire-to-wire and wire-to-board applications in household appliances, gaming, vending, security systems, industrial controls, HVAC, and other equipment. The contacts are phosphor bronze with pre-tin plating. The connector is UL recognized, CSA certified, and VDE approved.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
| 10+ | $1.59 | $1.59 |
| 25+ | $1.49 | $1.49 |
| 50+ | $1.42 | $1.42 |
| 120+ | $1.33 | $1.33 |
| 360+ | $1.23 | $1.23 |
| 600+ | $1.19 | $1.19 |
| 1,080+ | $1.14 | $1.14 |
| 2,520+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
6.50mm.
14A per line.
Free hanging (in-line).
26-16 AWG.
-30°C to 105°C.
Latch lock.
