| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

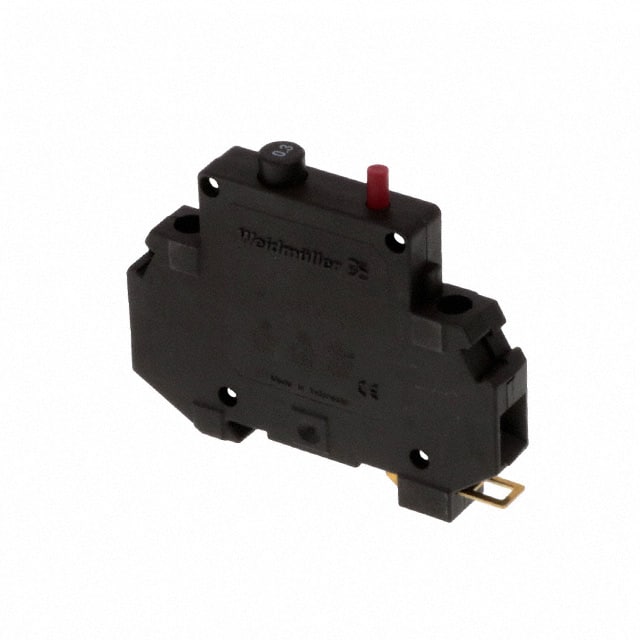

This Weidmüller 9129813500 is a single-pole thermal magnetic circuit breaker. It is designed for easy DIN rail mounting, making it suitable for various industrial and control panel applications.
The circuit breaker has a current rating of 300mA and a voltage rating of 250VAC. It is approved by CSA C22.2 No 235, UL1077, and VDE, ensuring compliance with relevant safety standards.
The actuator type is push-to-reset, allowing for straightforward operation. The internal resistance per pole at its rated current of 0.3A is 19.30 ohms.
This component is RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH unaffected.
The current rating is 300mA (0.3A).
The voltage rating is 250VAC and 80VDC.
It is a 1-pole circuit breaker.
It is a thermal magnetic circuit breaker.
It uses a push-to-reset actuator.
It mounts on a DIN Rail.
The typical internal resistance per pole is 19.3 Ohms at 0.3A.
