| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

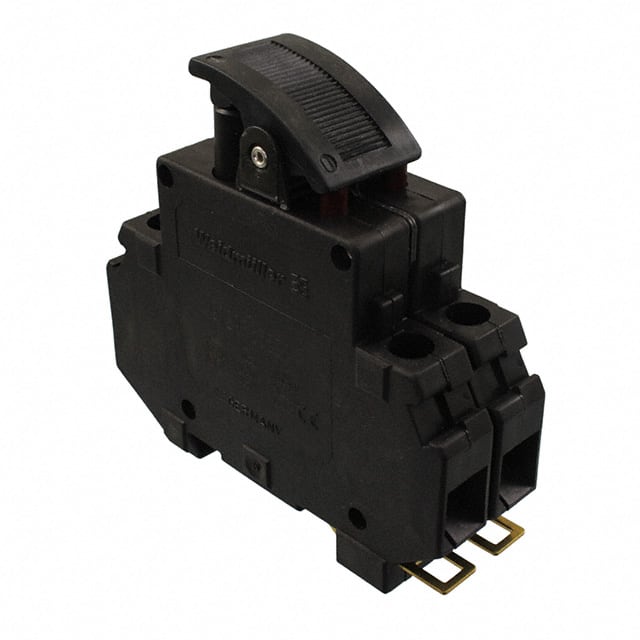

The Weidmüller 9129683500 is a two-pole, thermal magnetic circuit breaker designed for robust circuit protection applications. It offers a current rating of 10A and a voltage rating of 250VAC, with an 80VDC rating also specified.
This circuit breaker is suitable for DIN rail mounting, making it easy to integrate into standard electrical enclosures. The actuator type is push-to-reset, providing a clear and intuitive method for operation.
Key approvals include CSA C22.2 No 235, UL1077, and VDE, indicating compliance with significant industry standards. The internal resistance per pole is rated at 0.02 Ohms.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. This component is designed for reliable performance in various industrial and commercial settings.
10A.
250VAC and 80VDC.
2 poles.
Thermal magnetic.
DIN rail.
Push-to-reset.
CSA C22.2 No 235, UL1077, VDE.
