| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 544 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Internal Resistance per Pole | |
| Mounting Type | |
| Number of Poles | |
| Rail Type | |
| Trip Time at 23°C | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC |

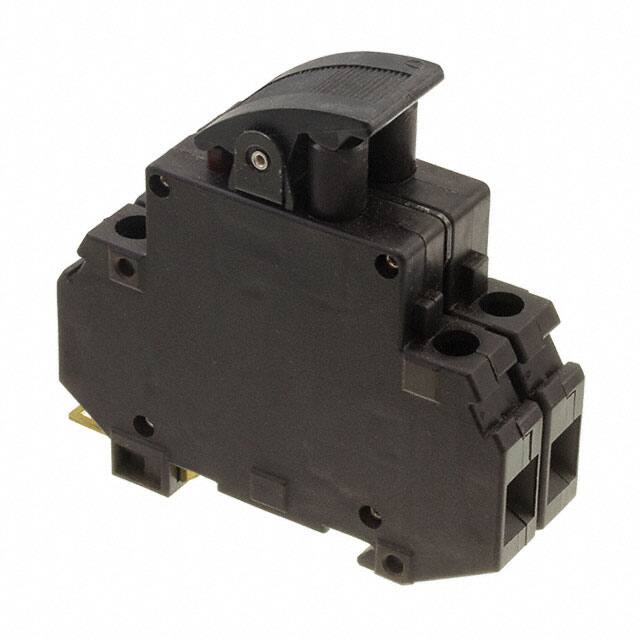

The Weidmüller 9129643500 is a 2-pole thermal magnetic circuit breaker from the CB4202-10 series. It is rated for 2A continuous current with a voltage rating of 250VAC and 80VDC. The breaker uses a push-to-reset actuator and mounts on a TS 35 DIN rail. Internal resistance per pole is 0.38 ohm. Typical trip time at 10x rated current and 23°C is 0.02 seconds. The breaker is approved to CSA C22.2 No 235, UL1077, and VDE standards.
2A
250VAC and 80VDC
2 poles
Push-to-reset
DIN rail (TS 35)
CSA C22.2 No 235, UL1077, VDE
