| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

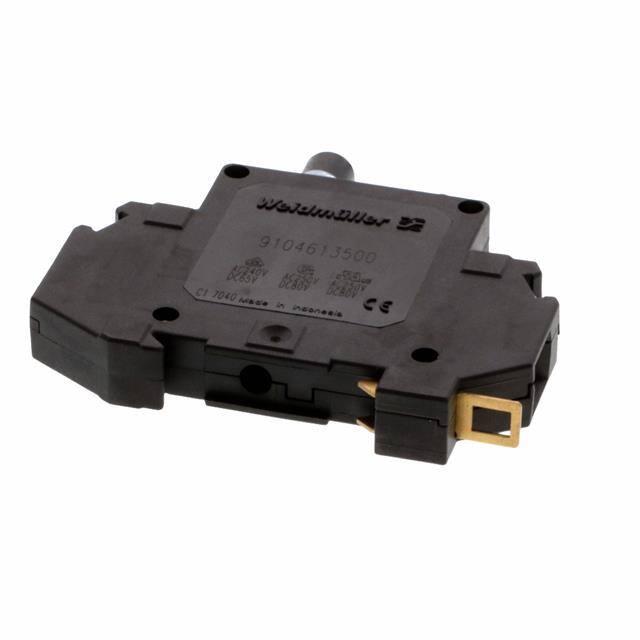

This Weidmüller 9104613500 is a single-pole thermal magnetic circuit breaker designed for reliable circuit protection. It offers a current rating of 9A and a voltage rating of 250VAC, with an additional DC voltage rating of 80VDC. The breaker features a convenient push-to-reset actuator for manual tripping and is designed for easy DIN rail mounting.
Key electrical specifications include a 9A current rating and 250VAC voltage rating. The thermal magnetic trip mechanism ensures protection against overcurrent and short circuits. The internal resistance per pole is 0.02 ohms. Approval agencies include CSA C22.2 No 235, UL1077, and VDE, indicating compliance with relevant safety standards.
The breaker is suitable for various industrial and commercial applications requiring robust overcurrent protection. Its DIN rail mounting capability simplifies installation in control panels and electrical enclosures. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
250VAC and 80VDC.
9A.
1 pole.
Thermal magnetic.
Push to reset.
DIN Rail.
CSA C22.2 No 235, UL1077, and VDE.
