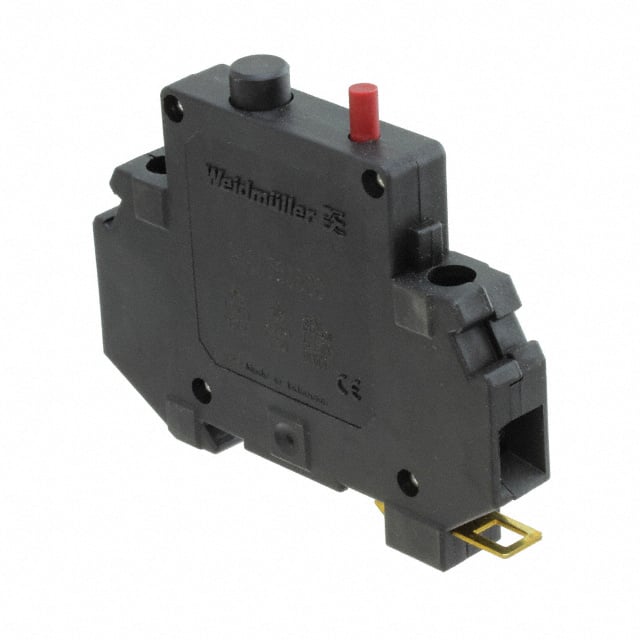

9104153500 The Weidmüller 9104153500 is a single-pole, thermal magnetic circuit breaker rated for 7A and 250VAC. It features DIN rail mounting.
Mfr Part #:

9104153500

Mfr Name: Weidmüller
Weidmüller
The Weidmüller 9104153500 is a single-pole, thermal magnetic circuit breaker rated for 7A and 250VAC. It features DIN rail mounting.
Stock on Request

9104153500 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

9104153500 Description

Short technical summary and product information.

This Weidmüller 9104153500 is a thermal magnetic circuit breaker designed for reliable circuit protection. It is a single-pole unit with a current rating of 7A and a voltage rating of 250VAC, suitable for various electrical applications.



The breaker is designed for easy installation on a DIN rail, making it convenient for panel building and industrial control systems. Its thermal magnetic trip mechanism provides overcurrent and short-circuit protection.



Key specifications include a 7A current rating, 250VAC voltage rating, and a single pole configuration. The actuator type is push-to-reset. The internal resistance per pole at 7A is 0.034 ohms.



This circuit breaker is suitable for applications requiring robust and dependable overcurrent protection in industrial and commercial settings. Its DIN rail mounting ensures compatibility with standard electrical enclosures.

9104153500 Quick Information

Product Type: Circuit Breaker
Canonical Name: Weidmüller 9104153500 Thermal Magnetic Circuit Breaker
Subcategory: Thermal Magnetic

9104153500 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9104153500 Features

  • Single-pole thermal magnetic circuit breaker.
  • Rated for 7A and 250VAC operation.
  • DIN rail mounting for easy installation.
  • Push-to-reset actuator type.
  • Internal resistance of 0.034 ohms at 7A.

9104153500 Applications

  • Provides overcurrent protection.
  • Suitable for industrial control panels.
  • Used in electrical distribution systems.
  • Ensures short-circuit protection.

9104153500 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 9104153500?

7A

What voltage ratings does the 9104153500 support?

250VAC and 80VDC

How many poles does the 9104153500 have?

1 pole

What type of breaker is the 9104153500?

Thermal Magnetic

What actuator type does the 9104153500 use?

Push to Reset

How is the 9104153500 mounted?

DIN Rail

What is the internal resistance of the 9104153500?

0.034 Ohms at 7A
