9102003200
Weidmüller

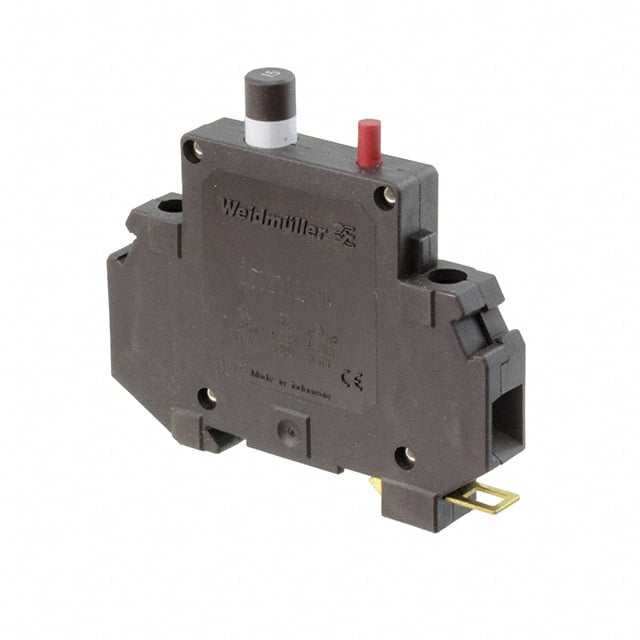

Weidmüller 9102003200 is a 1-pole thermal magnetic circuit breaker rated for 15A at 250VAC. It features a push-to-reset actuator and is designed for DIN Rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |
This Weidmüller 9102003500 is a single-pole circuit breaker designed for thermal magnetic operation. It offers a current rating of 15A and a voltage rating of 250VAC, with an 80VDC rating also specified. The breaker features a convenient push-to-reset actuator for manual tripping and reset operations.
Designed for easy installation, this circuit breaker utilizes DIN rail mounting, making it suitable for industrial control panels and electrical enclosures. It is approved by CSA C22.2 No 235, UL1077, and VDE, ensuring compliance with various safety standards. The internal resistance per pole is less than 0.02 ohms.
The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH status is REACH Unaffected. This component is part of the broader circuit protection category, providing reliable overcurrent protection in electrical systems.
250V AC (and 80VDC as per product description).
15A.
1 pole.
Thermal magnetic.
Push-to-reset.
CSA C22.2 No 235, UL1077, VDE.
DIN Rail.
