| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

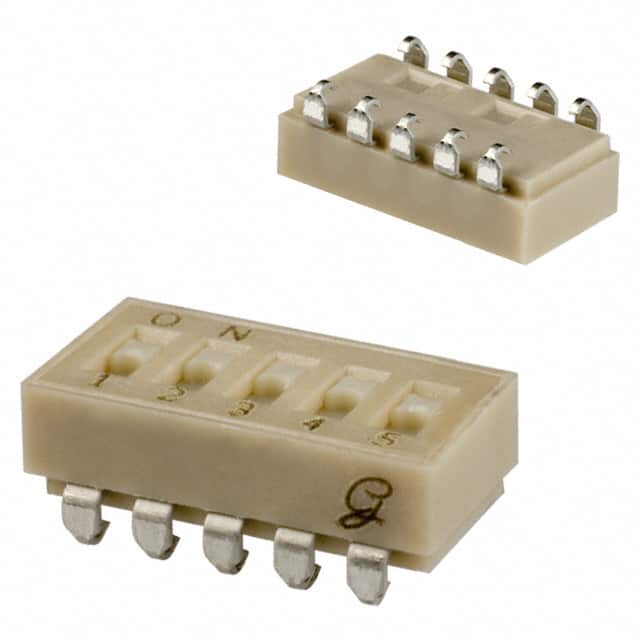

The Grayhill Inc. 90HBJ05PT is a low-profile slide DIP switch featuring Single Pole Single Throw (SPST) circuitry. It offers 5 positions and is designed for surface mount applications with a J Lead termination style. The switch is rated for 25mA at 24VDC and has a contact finish of Gold over Copper Alloy. Its operating temperature range is -40°C to 85°C.
This DIP switch has a mechanical life rating of 2,000 actuations and a pitch of 2.54mm (0.100 inches). The actuator type is a standard slide, with a recessed level for operation. It is washable and features a tape seal for protection. The height above the board is 0.220 inches (5.59mm).
The 90HBJ05PT is RoHS3 compliant and has an MSL of 1. It is suitable for various electronic applications requiring reliable switching in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 90HBJ05PT DIP switch features Single Pole Single Throw (SPST) circuitry.
The 90HBJ05PT DIP switch has 5 positions.
The 90HBJ05PT DIP switch is rated for 25mA at 24VDC.
The operating temperature range for the 90HBJ05PT DIP switch is -40°C to 85°C.
The 90HBJ05PT DIP switch has a mechanical life cycle rating of 2,000 actuations.
Yes, the 90HBJ05PT DIP switch is washable.
The 90HBJ05PT DIP switch is a surface mount type.
