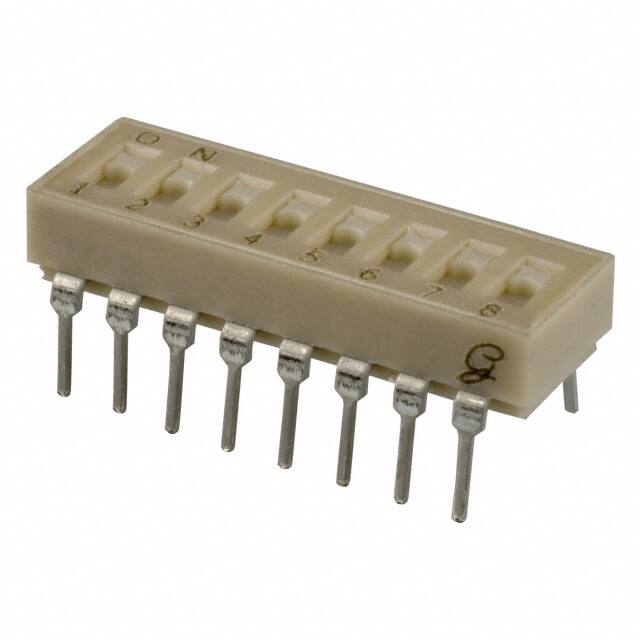

90B08S The Grayhill Inc. 90B08S is an 8-position DIP switch featuring SPST circuitry and a 25mA current rating at 24VDC. It is designed for through-hole mounting.
Mfr Part #:

90B08S

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 90B08S is an 8-position DIP switch featuring SPST circuitry and a 25mA current rating at 24VDC. It is designed for through-hole mounting.
✓ Total Stock: 74 pcs
$ Price Range: $0.75

90B08S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request 89+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

90B08S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Failure Rate
Features
Height Above Board
Length
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

90B08S Description

Short technical summary and product information.

The Grayhill Inc. 90B08S is a machine insertable MIDIP switch from the 90B series. This DIP switch offers 8 positions with SPST circuitry, suitable for applications requiring up to 25mA at 24VDC. It features high-pressure, reliable contacts with a gold finish over a copper alloy material.



Designed for through-hole mounting, the 90B08S has a pitch of 2.54mm (0.100 inches) and a height above the board of 0.195 inches (4.95mm). The actuator type is a standard slide, with options for flush or recessed levels. The switch base is molded and sealed, with an optional top seal for enhanced protection. It operates reliably within a temperature range of -40°C to 85°C.



This model is tested for TO-116 equipment and is washable. It comes in tube packaging, with 20 units per standard package. The contact finish is gold, ensuring good conductivity and durability.

90B08S Quick Information

Product Type: DIP Switch
Series: 90B
Canonical Name: Grayhill Inc. 90B Series DIP Switch, 8 Positions, SPST, 25mA, 24VDC
Subcategory: DIP Switch

90B08S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

90B08S Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

90B08S Features

  • 8-position SPST DIP switch.
  • Rated for 25mA at 24VDC.
  • Through-hole mounting with 2.54mm pitch.
  • Gold-plated copper alloy contacts.
  • Operates from -40°C to 85°C.

90B08S Applications

  • Ideal for board-level switching.
  • Used in control and configuration.
  • Suitable for automated assembly.
  • Reliable for industrial applications.

90B08S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 90B08S?

The operating voltage of the 90B08S is 24VDC.

How many positions does the 90B08S have?

The 90B08S has 8 positions.

What is the contact finish of the 90B08S?

The contact finish is gold.

What is the current rating of the 90B08S?

The current rating is 25mA.

What mounting style does the 90B08S use?

It uses through-hole mounting with PC pin termination.
