| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

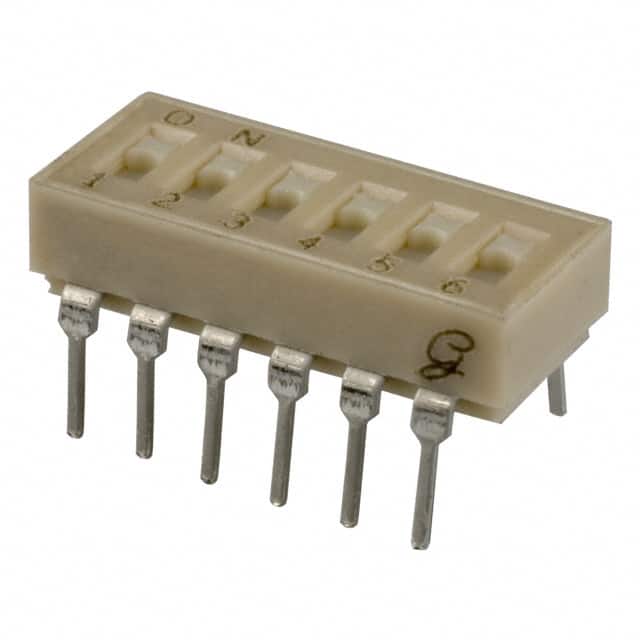

The Grayhill 90B06ST is a Slide DIP Switch from the 90B series, designed for reliable circuit control. This component features 6 positions with Single Pole Single Throw (SPST) circuitry, making it suitable for various switching applications.
It is constructed with a Through Hole mounting type and a PC Pin termination style, ensuring secure integration into PCBs. The switch operates within a temperature range of -40°C to 85°C and has a mechanical life rating of 2,000 cycles. The contact material is copper alloy with a gold contact finish for enhanced conductivity and durability.
Key electrical specifications include a current rating of 25mA at 30VDC. The actuator type is a standard slide with a recessed level, and it includes a tape seal for protection. This switch is RoHS3 Compliant and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 30 VDC.
It has 6 positions.
The current rating is 25mA.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant.
