| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Finish | |
| Body Material | |
| Body Plating | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Plating | |
| Contact Termination | |
| Durability (Minimum) | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Insulator Material | |
| Interface Standard | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Packaging Method | |
| Shield Termination | |
| Thread Size |

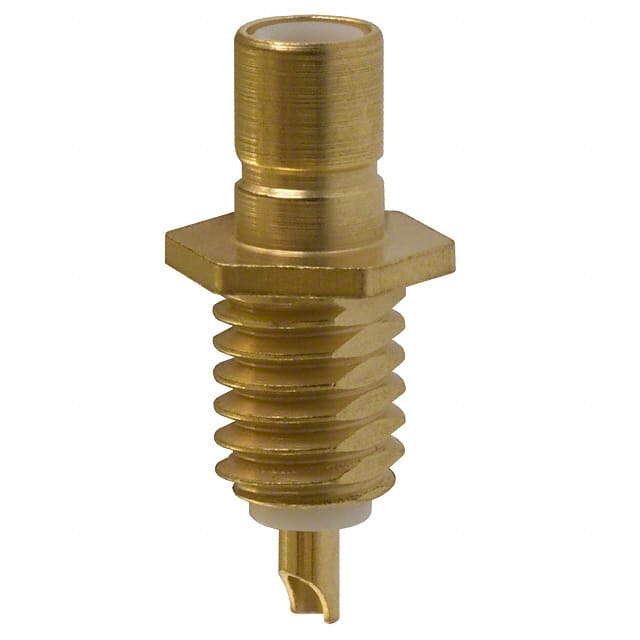

The Amphenol RF 903-406J-51R is an SMB series receptacle connector designed for RF applications. It features a male pin contact with 50 Ohm impedance, making it suitable for high-frequency signal transmission up to 4 GHz. The connector uses a snap-on fastening mechanism and is panel mounted with a bulkhead rear side nut, secured by a #10-32 UNEF-2A thread. The contact termination is solder cup, and the shield termination is solder, providing reliable connections. The body and center contact are made of brass with gold plating, and the insulator is PTFE. The interface conforms to MIL-STD-348. With a minimum durability of 500 mating cycles, this connector is built for repeated use. It is packaged as a single unit and is RoHS3 compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $14.42 | $14.42 |
| 10+ | $12.26 | $12.26 |
| 25+ | $11.49 | $11.49 |
| 50+ | $10.94 | $10.94 |
| 100+ | $10.42 | $10.42 |
| 300+ | $9.64 | $9.64 |
| 500+ | $9.30 | $9.30 |
| 1,000+ | $8.86 | $8.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
4 GHz.
Panel mount with bulkhead rear side nut.
Snap-On.
Solder cup.
500 cycles minimum.
RoHS3 compliant (unverified).
