| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
343 pcs
|
343 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Ingress Protection | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

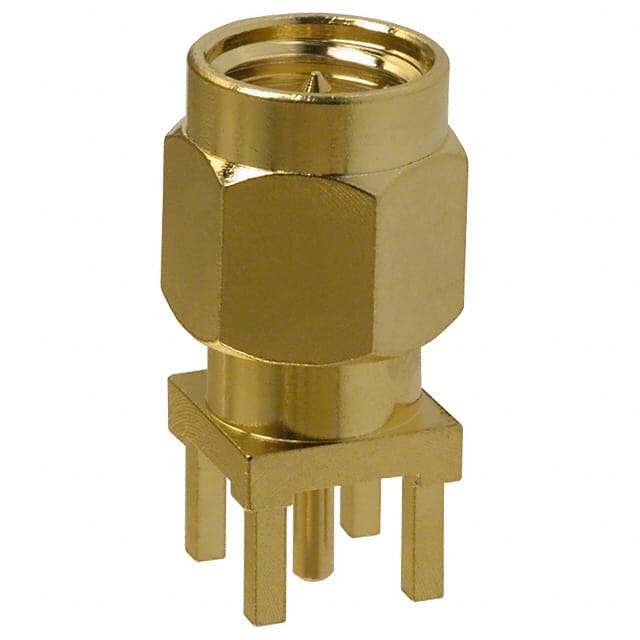

The Amphenol RF 901-9895-RFX is an SMA plug, male pin coaxial connector designed for through hole PCB mounting. It offers a 50 Ohm impedance and supports frequencies up to 18 GHz, making it suitable for high-frequency RF applications. The connector features a threaded fastening mechanism for secure mating and is terminated via solder on both the center contact and shield.
The connector's housing is gold-plated, and the center contact is made of brass. It is rated as weatherproof, providing environmental protection for outdoor or demanding applications. The single-port design is ideal for where a stable, high-performance RF connection is needed.
The 901-9895-RFX is classified as RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited) for moisture sensitivity. Its through hole mounting ensures reliable mechanical attachment and electrical connectivity on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.94 | $7.94 |
| 10+ | $6.75 | $6.75 |
| 25+ | $6.33 | $6.33 |
| 50+ | $6.02 | $6.02 |
| 100+ | $5.74 | $5.74 |
| 300+ | $5.31 | $5.31 |
| 500+ | $5.12 | $5.12 |
| 1,000+ | $4.88 | $4.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is a plug, male pin, SMA style.
The impedance is 50 Ohm.
The maximum frequency is 18 GHz.
Through hole mounting.
Threaded fastening.
Yes, the connector has a weatherproof ingress protection rating.
