| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

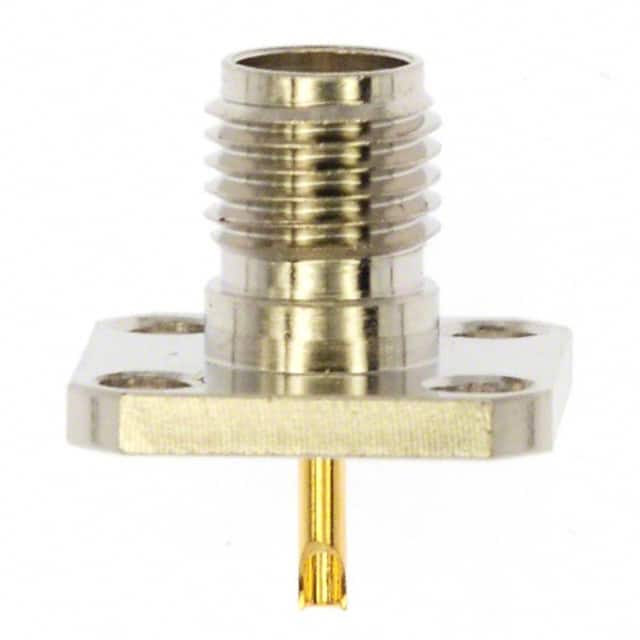

The Amphenol RF 901-9892-RFX is an SMA coaxial connector designed for reliable RF signal transmission. It is a receptacle with a female socket contact, offering a characteristic impedance of 50 Ohms and supporting frequencies up to 18 GHz. The connector uses a threaded fastening mechanism for secure mating.
This connector is designed for panel mount installation with a flange mounting feature. The center contact is made of beryllium copper, and the housing has a silver color. Contact termination is via a solder cup, and the shield is terminated by soldering.
The 901-9892-RFX is suitable for various RF applications requiring a robust, threaded SMA interface. Its 50 Ohm impedance makes it compatible with standard RF systems and test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.99 | $11.99 |
| 10+ | $10.19 | $10.19 |
| 25+ | $9.55 | $9.55 |
| 50+ | $9.09 | $9.09 |
| 100+ | $8.66 | $8.66 |
| 300+ | $8.02 | $8.02 |
| 500+ | $7.73 | $7.73 |
| 1,000+ | $7.36 | $7.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The maximum frequency is 18 GHz.
It is an SMA receptacle with a female socket.
It is panel mounted with a flange.
Contact termination is solder cup; shield termination is solder.
