| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

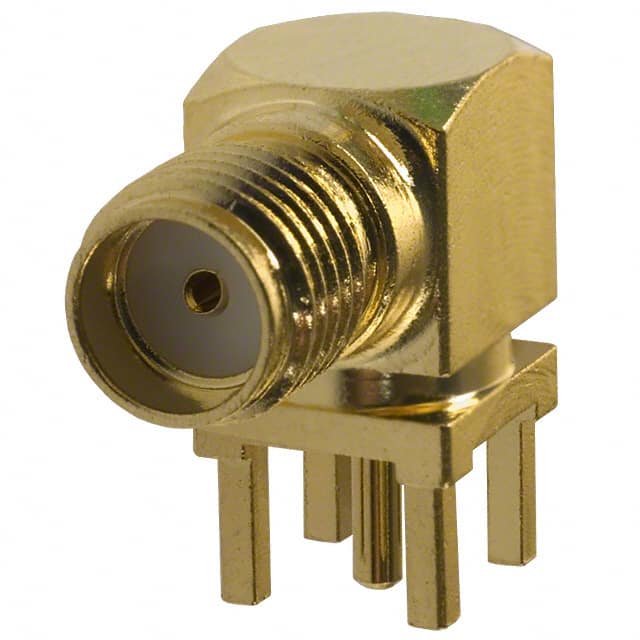

The 901-143-6RFX is an SMA coaxial connector from Amphenol RF. It features a jack female socket design with a threaded fastening mechanism. The center contact is made of beryllium copper, and both the center contact and shield are terminated by solder. The housing is gold plated.
This connector is rated for 50 Ohm impedance and supports frequencies up to 18 GHz. It is designed for through-hole, right-angle mounting on PCBs, making it suitable for compact RF circuit layouts. The connector has a single port and is RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited).
Applications include RF signal transmission, wireless communication equipment, and PCB edge mounting where a robust, high-frequency SMA interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.20 | $10.20 |
| 10+ | $8.67 | $8.67 |
| 25+ | $8.12 | $8.12 |
| 50+ | $7.73 | $7.73 |
| 100+ | $7.37 | $7.37 |
| 250+ | $6.82 | $6.82 |
| 500+ | $6.57 | $6.57 |
| 1,000+ | $6.27 | $6.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Jack, Female Socket.
SMA.
18 GHz.
50 Ohms.
Through Hole, Right Angle.
Threaded.
Gold.
