| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,550 pcs
|
4550 pcs | On Request | 1 | On Request | On Request | 1425+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Form | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Features | |
| Halogen Free | |
| Lead Style | |
| SVHC Present | |
| Termination Finish | |
| Type | |
| Wire Gauge |

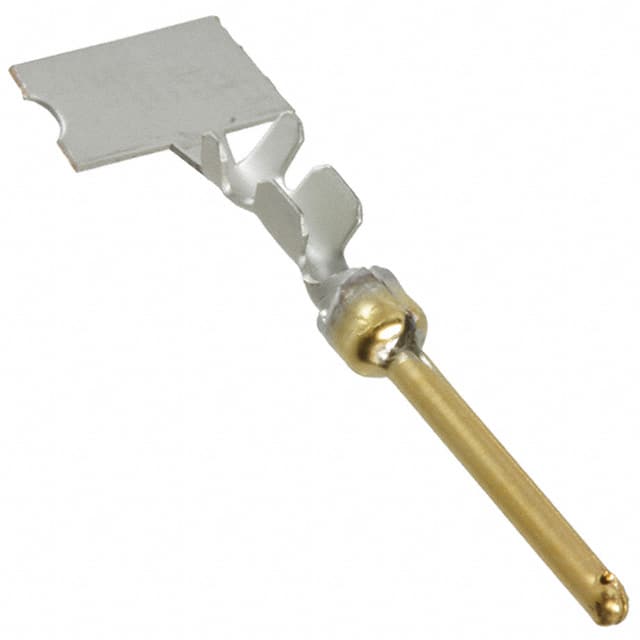

The Amphenol ICC 86564520064LF is a D-Sub connector contact designed for signal applications. This male pin contact features a stamped phosphor bronze base material with a gold flash contact finish. The termination area is finished with tin to facilitate reliable crimp connections.
The contact accommodates wire gauges from 20 AWG to 24 AWG and includes integrated insulation support for strain relief. The crimp termination style ensures a secure wire-to-contact joint suitable for repeated mating cycles.
Typical applications include D-Sub connector assemblies used in industrial, telecommunications, and computing equipment where signal integrity and reliable connection are required. The contact is RoHS3 compliant and unaffected by REACH restrictions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.11 | $0.11 |
| 10+ | $0.09 | $0.09 |
| 25+ | $0.09 | $0.09 |
| 50+ | $0.08 | $0.08 |
| 100+ | $0.08 | $0.08 |
| 250+ | $0.08 | $0.08 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.07 | $0.07 |
| 2,500+ | $0.06 | $0.06 |
| 5,000+ | $0.06 | $0.06 |
| 10,000+ | $0.06 | $0.06 |
| 15,000+ | $0.06 | $0.06 |
| 25,000+ | $0.05 | $0.05 |
| 35,000+ | $0.05 | $0.05 |
| 50,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact is rated for 20 to 24 AWG wire.
Crimp termination.
RoHS3 compliant per existing database records (unverified).
Phosphor bronze with a gold flash contact finish and tin termination finish.
