86094647113H55ELF
Amphenol ICC

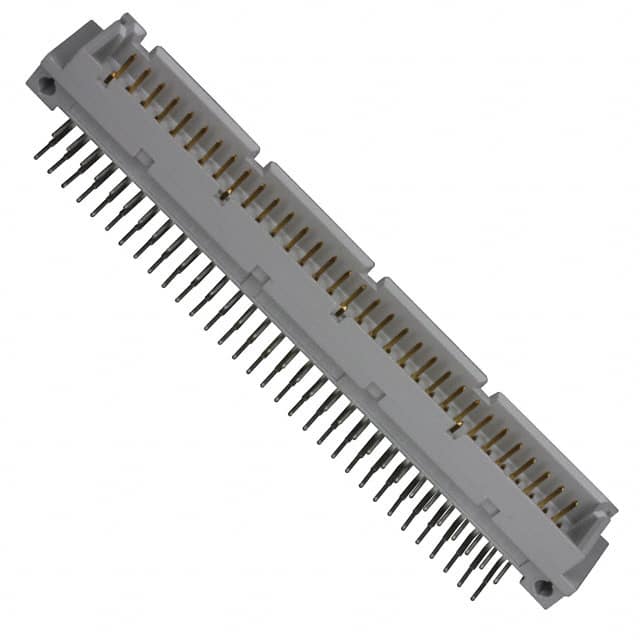

DIN 41612 Style C header with 96 total positions, 64 loaded, 3 rows, 2.54mm pitch, through-hole right angle solder termination, and gold contact finish.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,792 pcs
|
1792 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |
The 86094647113755ELF is a DIN 41612 style C header male pin connector from Amphenol ICC. It features 96 total positions with 64 positions loaded across 3 rows at a 2.54mm pitch. The connector is designed for through hole right angle mounting with solder termination. Contacts are finished with gold for reliable conductivity and corrosion resistance. This component is classified as Level/Class 2. It is RoHS3, REACH unaffected, and MSL 1 unlimited compliant, though these compliances are unverified. Designed for backplane interconnects in industrial and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.58 | $3.58 |
| 10+ | $3.04 | $3.04 |
| 25+ | $2.85 | $2.85 |
| 50+ | $2.72 | $2.72 |
| 100+ | $2.59 | $2.59 |
| 352+ | $2.37 | $2.37 |
| 704+ | $2.25 | $2.25 |
| 1,056+ | $2.19 | $2.19 |
| 2,816+ | $2.04 | $2.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
96 total positions with 64 positions loaded
Through hole, right angle
Gold
Class 2
3 rows
