| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Depth | |
| Features | |
| Height | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Number of Contacts | |
| Operating Temperature | |
| Power Rating | |
| Rated Voltage | |
| Relay Type | |
| Response Time | |
| Switching Voltage | |
| Termination Style | |
| Width |

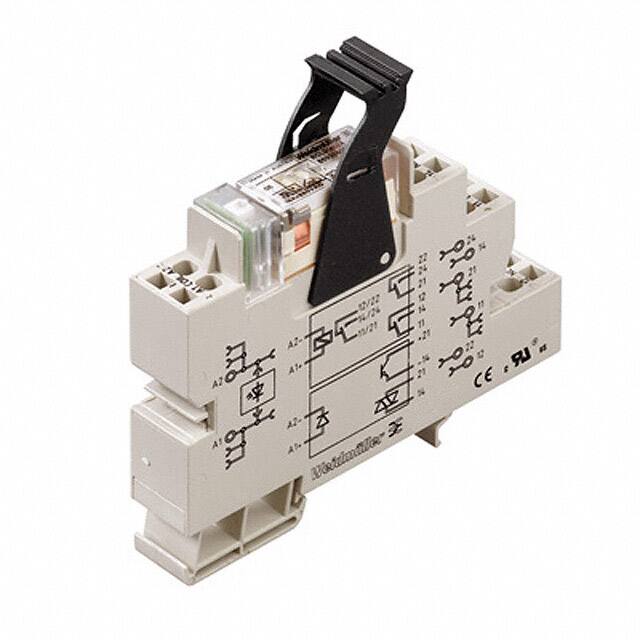

This Weidmüller 8536681001 relay, part of the PLUGSERIES, is a general purpose power relay designed for reliable switching applications. It operates with a 24VAC coil voltage and offers a continuous current rating of 8A, with a contact rating of 10A. The relay features a DPDT (2 Form C) contact configuration and a switching voltage of up to 250VAC.
Designed for ease of integration, this relay includes a DIN rail mounting type and tension clamp connections for secure wire termination. It operates within a temperature range of -40°C to 50°C and includes a green LED status indicator. The modular system allows for conventional relays and indicators to be easily plugged in, with retaining clips ensuring a secure mount.
Key electrical specifications include a coil resistance of 350 Ω ±10% and a power rating of 0.75 VA. The response time is 8 ms for output and 6 ms for input. Mechanical durability is rated for 5 x 10^6 switching cycles. The relay also features a UL 94 V-0 flammability rating and an IP20 protection degree.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The relay operates at a nominal control voltage of 24 VAC.
The relay can switch up to 250 VAC maximum.
It has a DPDT (2 Form C) contact configuration.
The coil resistance is 350 Ω ±10%.
It uses DIN rail mounting.
The relay is rated for 10 A at 250 VAC.
