Mfr Part #:

833-022-500-602

Name: 833-022-500-602
Brand: Edac
SKU: 833-022-500-602

Mfr Name: Edac

Description:

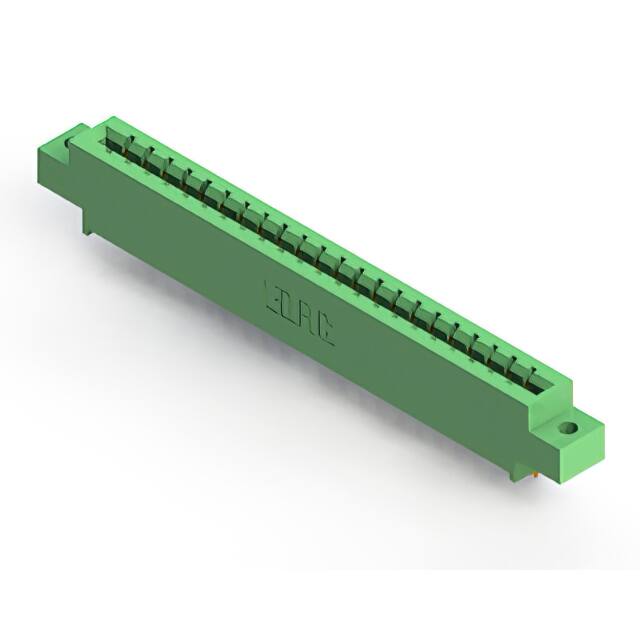

CONN EDGE SGL FMALE 22POS 0.156

Stock on Request

833-022-500-602 Description

Short technical summary and product information.

CONN EDGE SGL FMALE 22POS 0.156

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

837-022-500-602

Edac

CONN EDGE SGL FMALE 22POS 0.156

Category	Edgeboard Connectors
Manufacturer Name	Edac
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Gender	Female
Mounting Type	Through Hole
Number of Positions	22
Number of Rows	1
Operating Temperature	-40°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Single
Termination	Solder Eyelet(s)
