Mfr Part #:

8309-8000

Name: 8309-8000
Brand: 3M
SKU: 8309-8000

Mfr Name: 3M

Description:

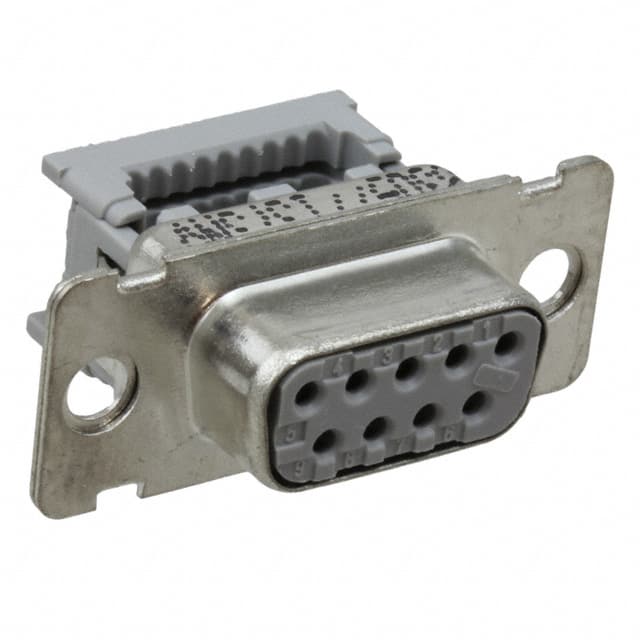

CONN D-SUB RCPT 9POS PNL MNT IDC

Stock on Request

8309-8000 Description

Short technical summary and product information.

CONN D-SUB RCPT 9POS PNL MNT IDC

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

8309-6000

3M

CONN D-SUB RCPT 9POS PNL MNT IDC

8309-8009

3M

CONN D-SUB RCPT 9POS PNL MNT IDC

8309-6009

3M

CONN D-SUB RCPT 9POS PNL MNT IDC

Category	D-Sub Connector Assemblies
Manufacturer Name	3M
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Type	Signal
Current Rating (Amps)	1A
Features	Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Steel, Tin Plated
Shell Size, Connector Layout	1 (DE, E)
Termination	IDC, Ribbon Cable
