| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

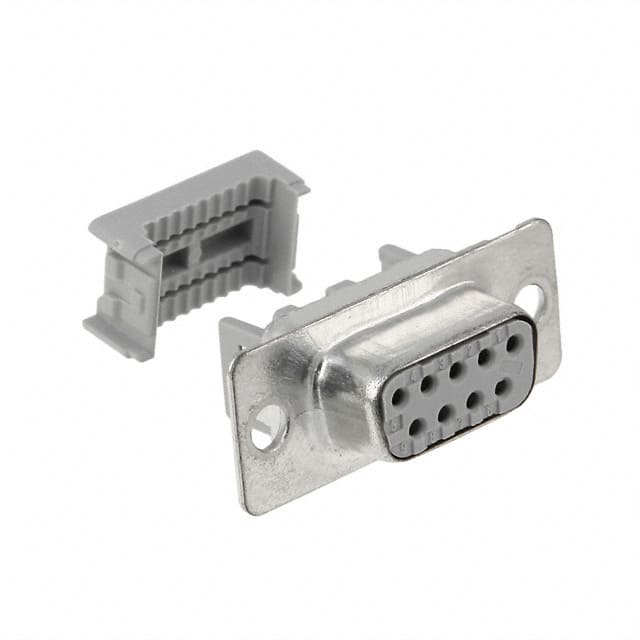

The 3M 8309-8009 is a 9-position D-Sub receptacle connector from the 8300 Series, designed for panel mount applications with IDC termination for ribbon cable. It features female socket contacts with gold plating (30 μin) over nickel underplating, ensuring reliable signal transmission. The connector accepts 26 and 28 AWG solid or stranded wire and includes a stainless steel strain relief (0.016 in thick) that hooks directly to the metal shell. The shell is steel with tin plating, and the insulator is glass-filled polyester (PBT) with a UL94 V-0 flammability rating. Electrical ratings include a current rating of 1 A, insulation resistance greater than 1×10^9 Ω at 500 V DC, and withstanding voltage of 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C. This connector is suitable for applications requiring a compact, low-profile D-Sub interface with reliable IDC termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.16 | $9.16 |
| 10+ | $8.24 | $8.24 |
| 20+ | $7.77 | $7.77 |
| 50+ | $7.57 | $7.57 |
| 100+ | $6.28 | $6.28 |
| 200+ | $5.81 | $5.81 |
| 500+ | $5.60 | $5.60 |
| 1,000+ | $5.34 | $5.34 |
| 2,000+ | $5.32 | $5.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 A
-55°C to +105°C
26 and 28 AWG solid or stranded wire
IDC for ribbon cable
Panel mount
Gold, 30 μin (0.76 μm)
Greater than 1×10^9 Ω at 500 V DC
