Mfr Part #:

803-87-080-20-001101

Mfr Name: Preci-Dip

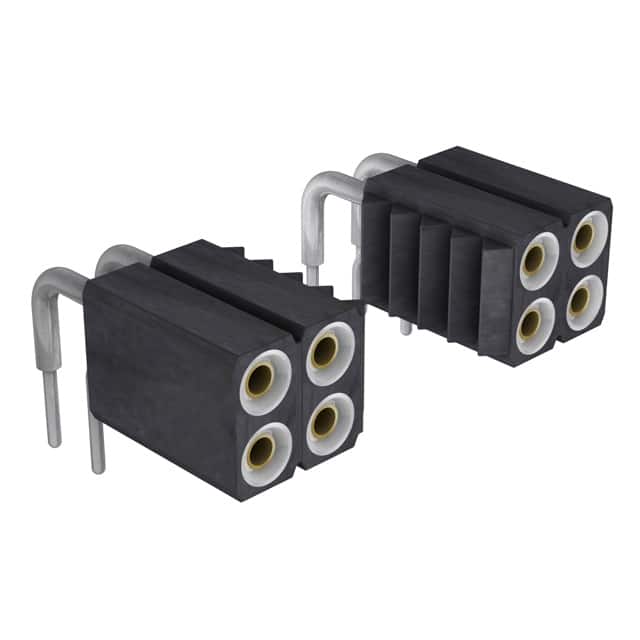

80-position dual row right-angle socket connector from Preci-Dip. Features 2.54mm pitch, through-hole solder termination, 3A current rating, and UL94 V-0 insulator.

✓ Total Stock: 18 pcs

$ Price Range: $10.91 - $12.34

803-87-080-20-001101 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	18 pcs On Request	18 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

803-87-080-20-001101 Description

Short technical summary and product information.

The Preci-Dip 803-87-080-20-001101 is an 80-position dual row right-angle socket connector designed for board-to-board applications. It features a 2.54mm pitch (0.100") and 2.54mm row spacing, with through-hole solder termination. The insulator is made of black glass-filled polyester PCT-GF30-FR with UL94 V-0 flammability rating. The contact is a beryllium copper clip with tin gold flash plating (plating code 87), providing reliable mating with pins of 0.70 to 0.90mm diameter or 0.635mm square. The connector is rated for 3A current and has a maximum contact resistance of 10 mΩ. It operates over a temperature range of -55°C to 125°C and meets climatic category 55/125/21 per IEC. The mechanical life is minimum 500 cycles, with typical insertion force of 1.2N and withdrawal force of 0.6N. The right-angle orientation allows for space-saving PCB layouts. The connector is suitable for various industrial and commercial applications requiring high-density interconnection.

803-87-080-20-001101 Quick Information

Product Type: Socket Connector

Canonical Name: 80 Position Dual Row Right Angle Socket Connector, 2.54mm Pitch, Through Hole, Solder Termination

Subcategory: Female Socket

803-87-080-20-001101 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

803-87-080-20-001101 Estimated Pricing

Qty	Low	High
84+	$12.34	$12.34
252+	$11.52	$11.52
504+	$11.27	$11.27
1,008+	$10.91	$10.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

803-87-080-20-001101 Features

80 positions in dual row configuration.
2.54mm pitch with right-angle mounting.
Rated for 3A continuous current.
Operates from -55°C to 125°C.
UL94 V-0 rated insulator.

803-87-080-20-001101 Applications

Used in board-to-board interconnects.
Ideal for high-density PCB designs.
Suitable for industrial control systems.
Used in test and measurement equipment.

803-87-080-20-001101 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

80 positions.

What is the pitch of the connector?

2.54mm (0.100").

What is the current rating of the connector?

3A.

What is the maximum working voltage?

100 VRMS / 150 VDC (2.54 mm grid).

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 125°C.

What is the mechanical life of the connector?

Minimum 500 cycles.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Preci-Dip
Capacitance	1 pF
Connector Type	Socket
Contact Finish	Tin
Contact Finish Thickness	Flash
Contact Length	3.20mm (0.126")
Contact Material	Beryllium copper (C17200)
Contact Resistance	10 mΩ
Contact Type	Female Socket
Current Rating	3A
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Industrial Grade	Yes
Insulation Color	Black
Insulation Height	5.08mm (0.200")
Insulation Resistance	10,000 MΩ
Insulator Material	Black glass filled polyester PCT-GF30-FR
Lead Spacing	2.54mm (0.100")
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Style	Board to Board
Termination	Solder
