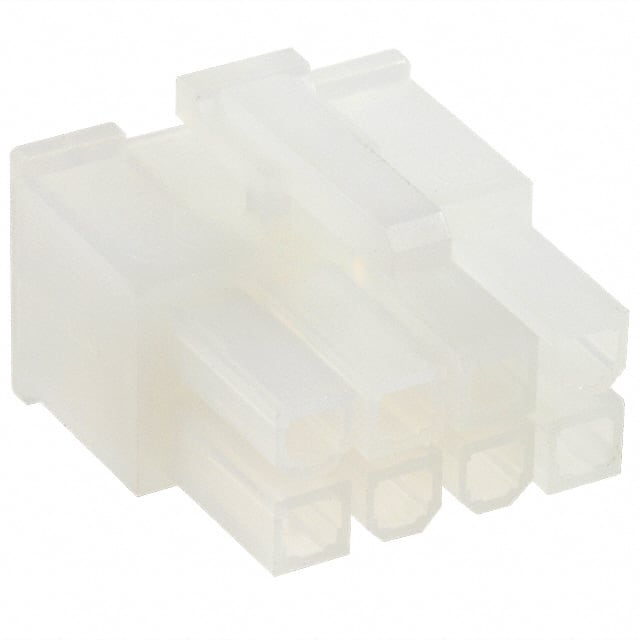

794954-8 TE Connectivity 794954-8 is an 8 position receptacle housing from the VAL-U-LOK V2 series. It features a 4.20mm pitch, 2 rows, crimp termination, and a natural nylon housing with UL 94V-2 flammability rating.
Mfr Part #:

794954-8

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 794954-8 is an 8 position receptacle housing from the VAL-U-LOK V2 series. It features a 4.20mm pitch, 2 rows, crimp termination, and a natural nylon housing with UL 94V-2 flammability rating.
✓ Total Stock: 2,650 pcs
$ Price Range: $0.15 - $0.27

794954-8 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,650 pcs
On Request
1650 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

794954-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector System
Connector Type
Contact Termination
Contact Type
Fastening Type
For Use With
Height
Housing Color
Housing Material
Length
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Operating Temperature Range
Operating Voltage
Pitch
Row Spacing
Sealed
Tape & Reel
Width
View Similar Products (0)

794954-8 Description

Short technical summary and product information.

The TE Connectivity 794954-8 is an 8 position receptacle housing from the VAL-U-LOK V2 series, designed for wire-to-board and wire-to-wire applications. It accepts female socket contacts with crimp termination and supports discrete wire with an insulation diameter range of 1.2 to 3.1 mm.



The housing is made of natural nylon and has a latch lock fastening type for secure mating. It is rated for operating voltages up to 600 VAC and temperatures from -40°C to 105°C. The part is not sealed and is intended for signal circuit applications. It carries CSA and UL agency approvals with a UL 94V-2 flammability rating.



Packaged in bags or boxes with a standard quantity of 500, this housing is suitable for use with printed circuit boards and is selectively loadable without multiple contact types.

794954-8 Quick Information

Product Type: Rectangular Connector Housing
Series: VAL-U-LOK V2
Canonical Name: TE Connectivity VAL-U-LOK V2 8 Position Receptacle Housing, 4.20mm Pitch, Crimp Termination
Subcategory: Rectangular Connector Housings

794954-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

794954-8 Estimated Pricing

Qty Low High
1+ $0.27 $0.27
10+ $0.23 $0.23
25+ $0.21 $0.21
100+ $0.20 $0.20
250+ $0.16 $0.16
1,000+ $0.16 $0.16
5,000+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

794954-8 Features

  • 8 position receptacle housing with 4.20mm pitch.
  • Accepts crimp socket contacts for discrete wire.
  • Rated for 600 VAC operating voltage.
  • Operating temperature range -40°C to 105°C.
  • Natural nylon housing with UL 94V-2 rating.

794954-8 Applications

  • Wire-to-board and wire-to-wire signal connections.
  • Used in automotive and industrial control modules.
  • Suitable for consumer electronics and appliances.
  • Designed for printed circuit board integration.

794954-8 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 794954-8 have?

The 794954-8 has 8 positions arranged in 2 rows.

What is the pitch of the 794954-8?

The centerline pitch is 4.20 mm (0.165 inches).

What is the operating voltage rating?

The operating voltage is 600 VAC.

What mounting type does this housing use?

The mounting type is free hanging (in-line).

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

Is the 794954-8 RoHS compliant?

Yes, it is always EU RoHS/ELV compliant.
