| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly Integration Feature | |
| Centerline (Pitch) | |
| China RoHS | |
| Circuit Application | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| For Use With | |
| Glow Wire Rating | |
| Halogen Free | |
| Height | |
| Housing Material | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Packaging Method | |
| Panel Mount Feature | |
| Pitch | |
| Row Spacing | |
| Sealable | |
| Standard Package Quantity | |
| Termination Method to Wire and Cable | |
| UL Flammability Rating | |
| Width |

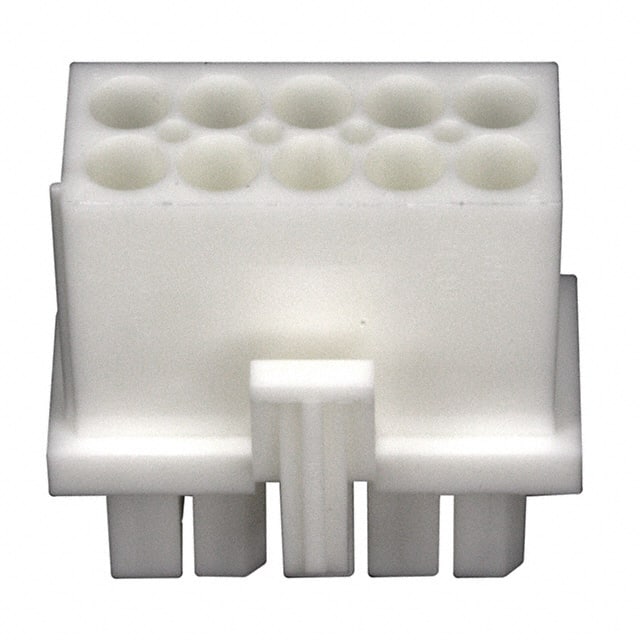

The TE Connectivity 794781-1 is a Mini-Universal MATE-N-LOK rectangular power connector housing. It is a plug type housing designed for wire-to-wire applications with 10 positions arranged in 2 rows on a 4.14mm pitch. The housing accepts socket contacts and is terminated via crimp method. It is suitable for cable mount (free-hanging) installation with a latch lock fastening mechanism. The housing is made of white nylon with a UL 94V-0 flammability rating. It operates over a temperature range of -20°C to 105°C and is rated for 600 VDC. The circuit application is for power and signal. This housing is not sealable and does not have panel mount or assembly integration features. It is RoHS compliant and low halogen (Br, Cl, F, I < 900 ppm). Standard packaging quantity is 1200 pieces per package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $1.21 | $1.21 |
| 25+ | $1.12 | $1.12 |
| 100+ | $1.05 | $1.05 |
| 250+ | $0.95 | $0.95 |
| 500+ | $0.89 | $0.89 |
| 1,200+ | $0.74 | $0.74 |
| 2,400+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The housing has 10 positions arranged in 2 rows.
The pitch is 4.14 mm (0.163 inches).
The operating voltage is 600 VDC.
The mounting type is cable mount (free-hanging).
The operating temperature range is -20°C to 105°C.
The housing material is rated UL 94V-0.
Yes, it is RoHS compliant (EU 2011/65/EU) and low halogen.
