| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,703 pcs
|
3703 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Flammability Rating | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing |

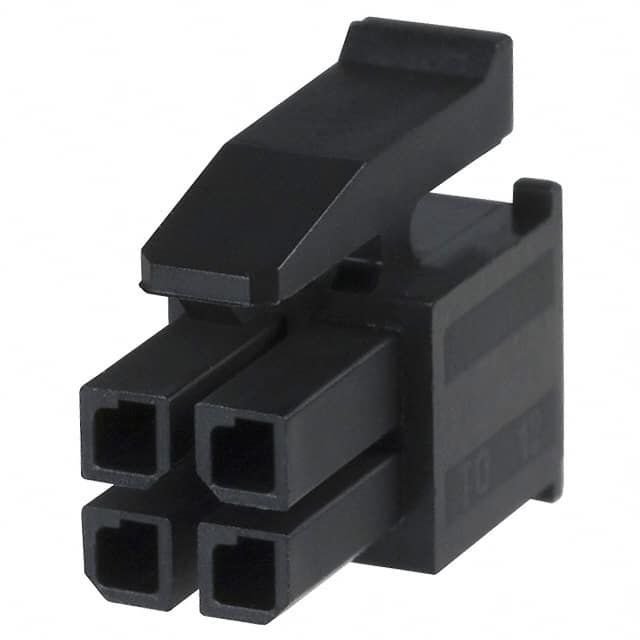

The TE Connectivity 794617-4 is a 4-position receptacle housing from the Micro MATE-N-LOK series. This component is designed for free hanging (in-line) mounting and uses a latch lock fastening type for secure mating. The housing accommodates female socket contacts terminated via crimp, providing a reliable connection.
The housing is organized in a dual-row configuration with a 3.00mm pitch and 3.00mm row spacing. It is constructed from Nylon 66/6 insulation material and has a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C, making it suitable for a wide variety of environments.
This receptacle housing is suitable for use in wire-to-wire or wire-to-board applications where a compact, reliable connector system is required. The Micro MATE-N-LOK series is known for its robust design and ease of assembly, with contacts sold separately and crimped onto wires before insertion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
| 10+ | $0.42 | $0.42 |
| 25+ | $0.39 | $0.39 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.33 | $0.33 |
| 1,000+ | $0.29 | $0.29 |
| 2,500+ | $0.27 | $0.27 |
| 4,800+ | $0.25 | $0.25 |
| 11,200+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in 2 rows.
The pitch is 3.00mm and the row spacing is also 3.00mm.
It uses a free hanging (in-line) mounting style with a latch lock fastening type.
