| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | 0647 | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Switch Type | |
| Tape & Reel | |
| Termination Style |

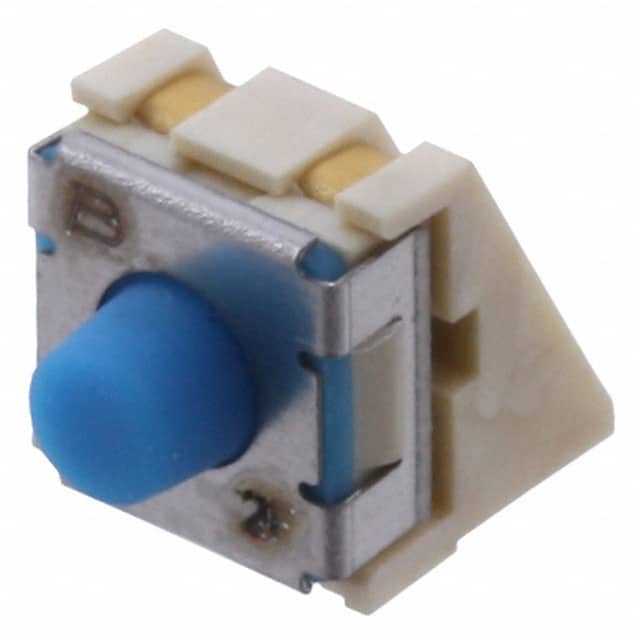

The Bourns 7914S-1-000E is a tactile switch from the 7914 series, designed for reliable operation in various electronic applications. This switch features a normally open (SPST-NO) contact configuration, rated for 100 mA at 16 VDC. It is built for surface mount applications, offering a termination style of SMD (SMT) Tab and a right-angle mounting type.
The switch is engineered for durability, with an operating temperature range of -55°C to 125°C. Its mechanical characteristics include an actuator force of 300gf and a travel of 0.5 mm. The physical dimensions are approximately 5.00mm x 5.18mm, making it suitable for compact designs. The sealed nature of the switch allows for compatibility with board washing processes and meets IP67 standards.
Key features include its sealed construction for environmental protection, compatibility with pick-and-place equipment, and a cycle life of 500,000 actuations when loaded. The base material is thermoplastic (UL94V-0), and the terminals are gold-plated copper alloy.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 7914S-1-000E has a contact rating of 100 mA at 16 VDC, a contact resistance of 100 milliohms maximum, and an insulation resistance of 100 megohms minimum.
The operating temperature range for the Bourns 7914S-1-000E is -55°C to 125°C.
The 7914S-1-000E is supplied in an SMD J-lead package and is designed for surface mounting.
Yes, the Bourns 7914S-1-000E is RoHS Compliant.
