| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

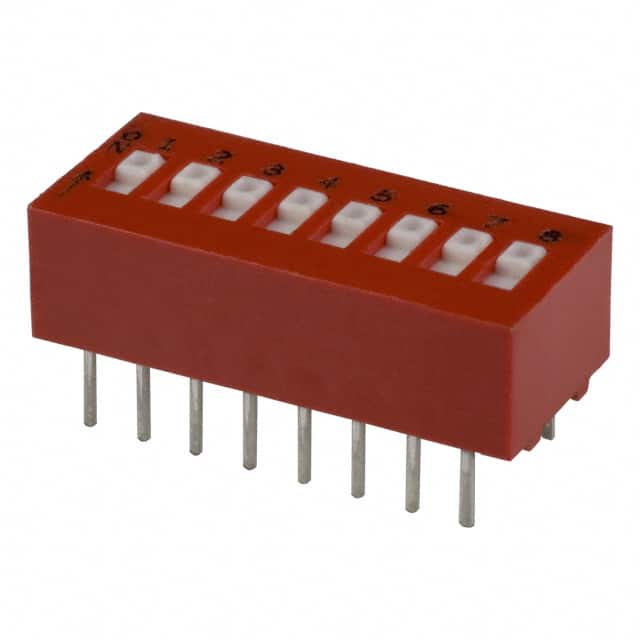

The Grayhill Inc. 78RB08ST is a through-hole mount DIP switch from the 78 Series. This switch offers 8 positions with SPST circuitry, suitable for various electronic applications. It is rated for 150mA at 30VDC and features a gold contact finish over a copper alloy contact material.
The switch is designed with a tape seal for protection and has a recessed actuator type. Its operating temperature range is -40°C to 85°C. The termination style is PC Pin, and it has a pitch of 2.54mm (0.100"). The height above the board is 0.265" (6.73mm).
This component is RoHS3 Compliant and has an MSL rating of 1 Unlimited. It is suitable for applications requiring reliable switching in a compact DIP package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating for the 78RB08ST DIP switch is 30VDC.
The 78RB08ST DIP switch has 8 positions.
The 78RB08ST DIP switch uses through-hole mounting.
The operating temperature range for the 78RB08ST DIP switch is -40°C to 85°C.
The 78RB08ST DIP switch has SPST circuitry.
Yes, the 78RB08ST DIP switch features a tape seal.
