| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,621 pcs
|
2621 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
765 pcs
|
765 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
379 pcs
|
379 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application Use | |
| Color | |
| Connector Type | |
| Contact Layout | |
| Contact Retention | |
| Contact Termination | |
| Contact Transmits | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Housing Material | |
| Keying | |
| Lead Spacing | |
| Mating Retention | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Rated Current | |
| Row Spacing | |
| Seal Type | |
| Standard Package Quantity | |
| Strain Relief | |
| Termination Style | |
| UL Flammability Rating | |
| Wire Type |

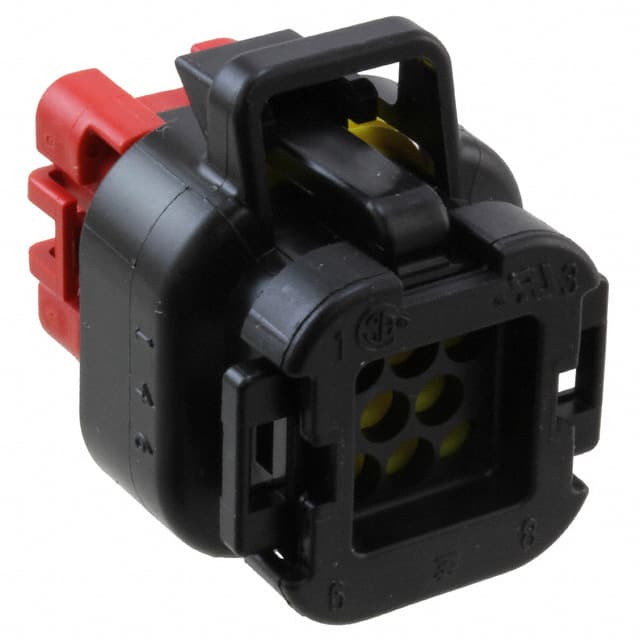

The TE Connectivity Deutsch Connectors 776286-1 is an AMPSEAL series 8 position plug connector housing designed for wire-to-wire applications. It features a black PBT housing with a UL 94V-0 flammability rating and a peripheral and wire seal for environmental protection. The connector has a 4.00mm pitch and row spacing with a staggered contact layout. It includes a latch holder fastening system with mating retention and terminal position assurance (TPA) for contact retention. The housing is keyed with positions 2 and 4 and supports stranded wire with crimp termination. It is rated for operating voltages up to 250VAC and currents from 8A to 17A, with an operating temperature range of -40 to +105°C or -40 to +125°C depending on the variant. This connector is suitable for signal and power transmission in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.16 | $5.16 |
| 10+ | $4.54 | $4.54 |
| 25+ | $4.38 | $4.38 |
| 56+ | $4.07 | $4.07 |
| 112+ | $3.89 | $3.89 |
| 280+ | $3.57 | $3.57 |
| 560+ | $3.47 | $3.47 |
| 1,120+ | $3.35 | $3.35 |
| 2,520+ | $3.12 | $3.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in 3 rows with a staggered layout.
4.00mm pitch with 4.00mm row spacing.
8 A to 17 A depending on contact size and wire gauge.
250 VAC.
Free hanging (in-line) mounting.
Yes, it has a peripheral and wire seal.
-40 to +105 °C or -40 to +125 °C depending on the variant.
