| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
284 pcs
|
284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Cover Material | |
| Fastening Type | |
| Flammability Rating | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Length | |
| Locking Wedge Material | |
| Mating Seal Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Width | |
| Wire Seal Material | |
| Wire Size Range |

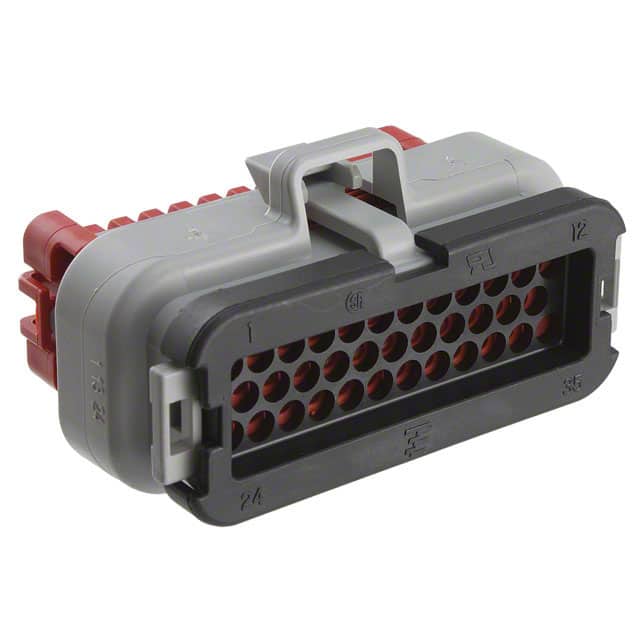

The 776164-4 is a 35-position rectangular connector plug housing from TE Connectivity Deutsch Connectors. It features 35 positions arranged in 3 rows with a 4.00mm pitch and row spacing. The housing is made of UL94V-0 rated PBT+PC plastic, and includes a red locking wedge and black cover. Mating seals and wire seals are made of silicone.
Designed for free hanging (in-line) mounting with a latch lock fastening system, this housing accepts crimp terminals such as the 770520-1 and 770520-3 for wire sizes 0.5-1.5 mm². The overall dimensions are 63.4mm length, 66mm width, and 27.45mm height.
This plug housing is color-coded gray, and is mechanically keyed to mate with identically colored header assemblies. It is suitable for automotive and industrial applications requiring a robust, reliable connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.51 | $16.51 |
| 10+ | $14.03 | $14.03 |
| 28+ | $13.05 | $13.05 |
| 56+ | $12.42 | $12.42 |
| 112+ | $11.83 | $11.83 |
| 252+ | $11.17 | $11.17 |
| 504+ | $10.64 | $10.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
35 positions.
4.00mm (0.157 inches).
Free hanging (in-line) mounting.
Gray.
Latch lock.
PBT+PC, rated UL94V-0.
0.5-1.5 mm² (20-16 AWG TXL, 1.0-1.5 mm² FLRY).
