| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
336 pcs
|
336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Cover Material | |
| Fastening Type | |
| Flammability Rating | |
| Housing Material | |
| Lead Spacing | |
| Locking Wedge Material | |
| Mating Seal Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge Range | |
| Wire Seal Material |

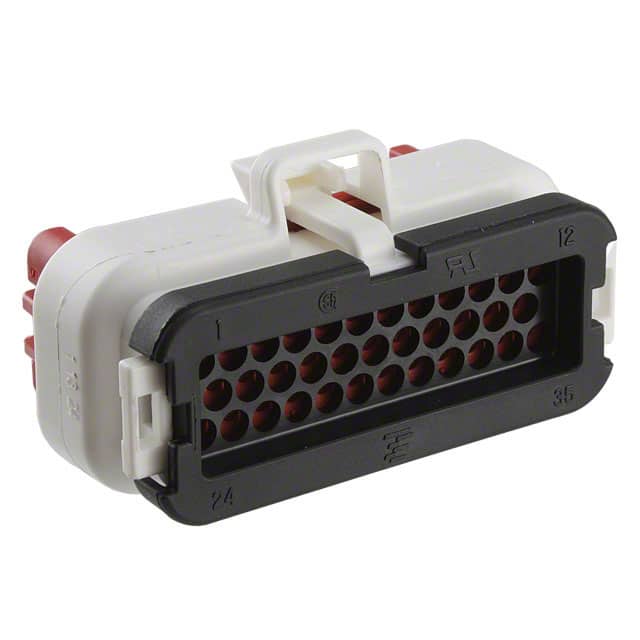

The 776164-2 is a 35-position rectangular connector plug housing from TE Connectivity Deutsch Connectors. It has a 4.00mm pitch and 3 rows of contacts. The housing is designed for free hanging (in-line) mounting and uses a latch lock fastening mechanism for secure mating. The natural-colored housing is made of PBT+PC with a UL94V-0 flammability rating. The locking wedge is red PBT and the cover is black PBT, both also UL94V-0. Silicone mating and wire seals provide environmental protection. This housing accepts wire sizes from 0.5 mm² to 1.5 mm² (20 AWG to 16 AWG) using TE terminals 770520 (reeled) or 770854 (loose piece). Note that circuits 3, 7, 16, 17, 21, and 22 are blocked. The housing is color-keyed to mate with identically colored header assemblies. It is part of a family of connectors available in 8, 14, 23, and 35 positions.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.16 | $19.16 |
| 10+ | $16.28 | $16.28 |
| 28+ | $15.14 | $15.14 |
| 56+ | $14.42 | $14.42 |
| 112+ | $13.73 | $13.73 |
| 252+ | $12.97 | $12.97 |
| 504+ | $12.35 | $12.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 35 positions.
The pitch is 4.00mm (0.157 inches).
It uses free hanging (in-line) mounting.
It uses a latch lock fastening mechanism.
The housing is made of PBT+PC with UL94V-0 flammability rating.
It accepts 0.5 mm² to 1.5 mm² (20 AWG to 16 AWG) wire.
Yes, circuits 3, 7, 16, 17, 21, and 22 are blocked.
