| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connection Method | |
| Contact Type | |
| Depth | |
| Height | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Number of Contacts | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

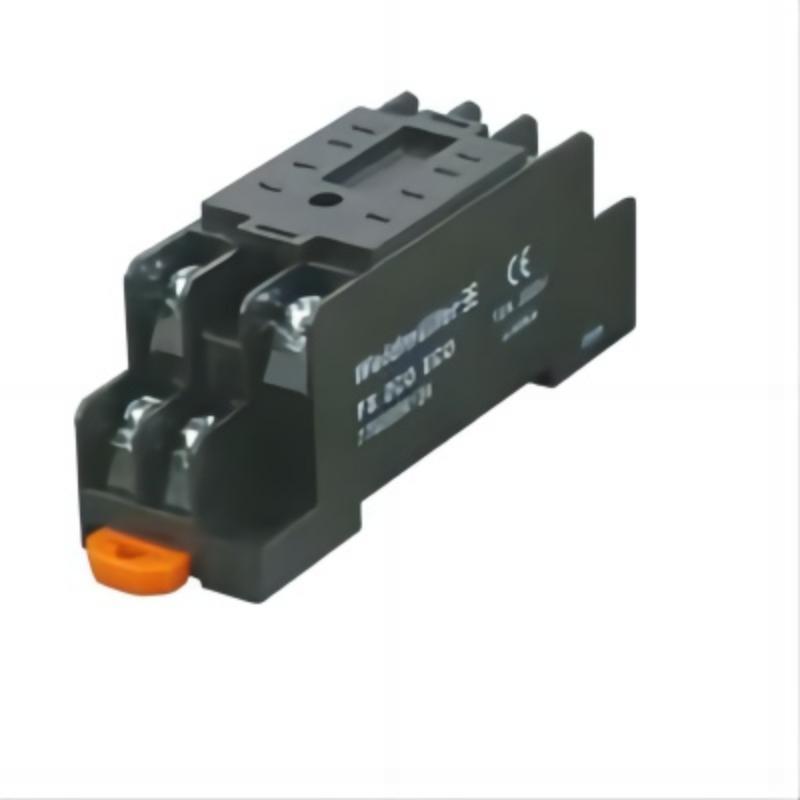

The Weidmüller 7760056126 is a D-SERIES FS relay socket designed for universal use in industrial automation applications. This model features 2 CO (Changeover) contacts and utilizes a reliable screw connection method for wiring.
With a compact design, the relay socket measures 30mm in depth, 75mm in height, and 22mm in width. It is designed to be mounted on a TS 35 rail, a common standard in industrial control cabinets. The net weight of the unit is 36g.
This relay socket is part of Weidmüller's D-SERIES, known for its innovative functions and wide range of variants. It is suitable for various loads depending on the contact material used in the associated relay. The standard package quantity is 10 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Weidmüller 7760056126 relay socket has 2 CO contacts.
The 7760056126 relay socket uses a screw connection.
The dimensions of the Weidmüller 7760056126 relay socket are 30mm in depth, 75mm in height, and 22mm in width.
The standard package quantity for the 7760056126 relay socket is 10 pieces.
The 7760056126 relay socket is designed for TS 35 rail mounting.
