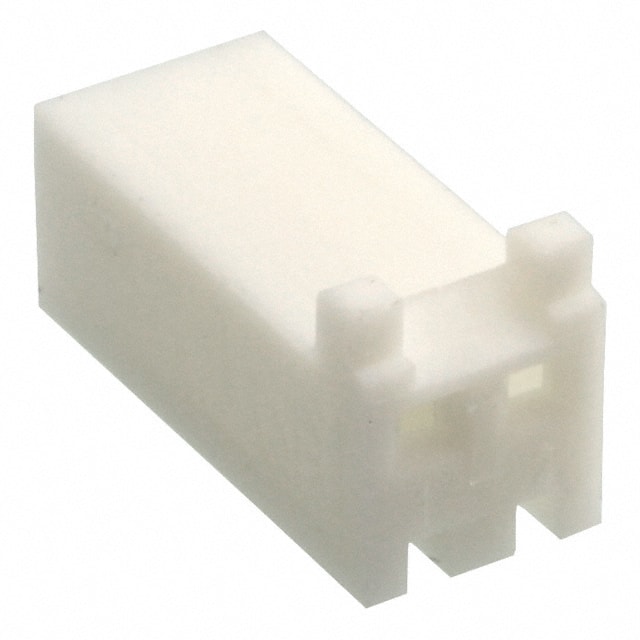

770602-2 TE Connectivity 770602-2 is a 2-position rectangular connector housing with a 2.54mm pitch. It features a receptacle design with female socket contacts and locking ramp fastening.
Mfr Part #:

770602-2

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 770602-2 is a 2-position rectangular connector housing with a 2.54mm pitch. It features a receptacle design with female socket contacts and locking ramp fastening.
✓ Total Stock: 3,750 pcs

770602-2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
2,750 pcs
On Request
2750 pcs On Request 1 On Request On Request On Request On Request On Request
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

770602-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
View Similar Products (0)

770602-2 Description

Short technical summary and product information.

The TE Connectivity 770602-2 is a rectangular connector housing designed for wire-to-wire applications. It is a 2-position receptacle housing with a 2.54mm (0.100") pitch, accommodating female socket contacts via crimp termination.



The housing features a locking ramp fastening mechanism for secure mating and is designed for free hanging (in-line) mounting. The natural color housing is suitable for general-purpose use in a variety of electronic interconnect systems.



This housing is part of TE's CST-100 series and is commonly used in applications requiring a compact, reliable connection. The crimp termination allows for field-installable wiring without soldering.

770602-2 Quick Information

Product Type: Rectangular Connector Housing
Series: CST-100
Canonical Name: TE Connectivity 770602-2 Rectangular Connector Housing, Receptacle, 2 Position, 2.54mm Pitch
Subcategory: Receptacle Housing

770602-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

770602-2 Features

  • 2-position receptacle housing with 2.54mm pitch.
  • Crimp termination for field-installable wiring.
  • Locking ramp fastening for secure mating.
  • Free hanging (in-line) mounting style.
  • Natural color housing for general-purpose use.

770602-2 Applications

  • Wire-to-wire interconnect applications.
  • General purpose electronic connector systems.
  • Field wiring requiring crimp termination.
  • Compact in-line connector assemblies.

770602-2 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 770602-2 have?

The 770602-2 has 2 positions.

What is the pitch of the 770602-2?

The pitch is 2.54mm (0.100").

What type of mounting does the 770602-2 use?

The mounting type is free hanging (in-line).

What is the contact termination style?

The contact termination is crimp.

What is the fastening type?

The fastening type is locking ramp.
