| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

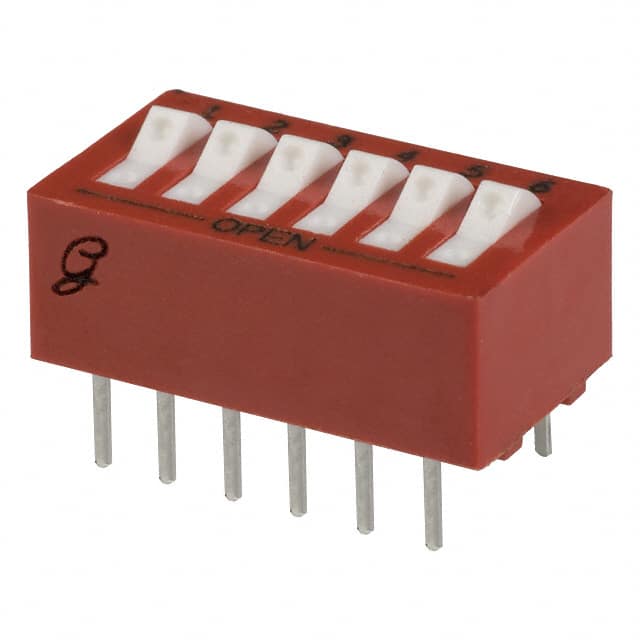

This Grayhill 76SB06T is a single pole, single throw (SPST) DIP switch designed for through-hole mounting. It offers 6 positions and a raised rocker actuator for easy operation. The switch is rated for 50mA at 30VDC and features gold-plated copper alloy contacts.
With a mechanical life cycle of 2,000 actuations and a sealed base life rating of 2,000, this DIP switch is built for reliability. It operates within a temperature range of -40°C to 85°C. The termination style is PC pin, and the pitch is 2.54mm (0.100").
This component is suitable for various electronic applications requiring manual switching and configuration. Its through-hole design ensures secure board mounting, while the SPST circuitry provides simple on/off functionality per position.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 76SB06T DIP switch features SPST circuitry.
The 76SB06T DIP switch has 6 positions.
The switch rating for the 76SB06T is 50 mA at 30 VDC.
The operating temperature range for the 76SB06T DIP switch is -40°C to 85°C.
Yes, the 76SB06T DIP switch is RoHS3 Compliant.
