76PSB08S The Grayhill Inc. 76PSB08S is a piano DIP switch with 8 positions and an SPST circuit. It is rated for 150mA and 30VDC.
Mfr Part #:

76PSB08S

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 76PSB08S is a piano DIP switch with 8 positions and an SPST circuit. It is rated for 150mA and 30VDC.
✓ Total Stock: 154 pcs
$ Price Range: $0.75

76PSB08S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
154 pcs
On Request
154 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76PSB08S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

76PSB08S Description

Short technical summary and product information.

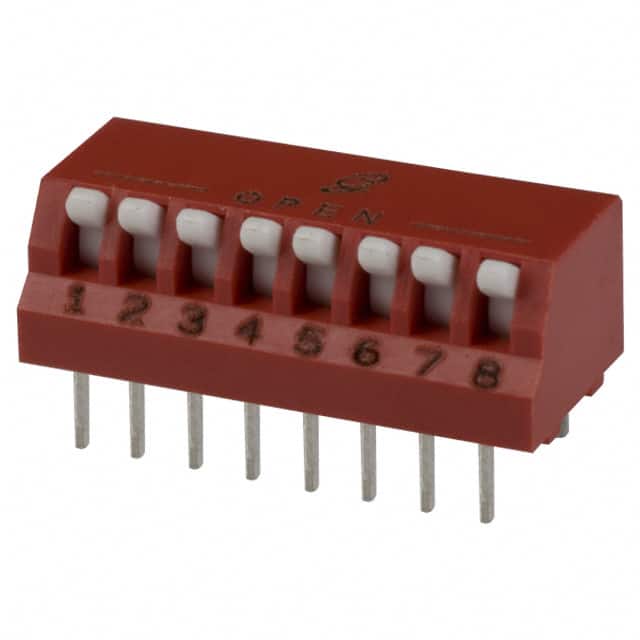

The Grayhill Inc. 76PSB08S is a piano-style DIP switch designed for through-hole, right-angle mounting. It features 8 positions with an SPST (Single Pole, Single Throw) circuit configuration.



This switch is rated for a current of 150mA and a voltage of 30VDC. The contact finish is gold over a copper alloy material. It operates within a temperature range of -40°C to 85°C and is washable.



The actuator level is raised, and it includes tape seal for protection. The pitch is 2.54mm (0.100"), and the height above the board is 7.65mm (0.301"). The termination style is PC pin.



Compliance includes RoHS3, MSL 1 Unlimited, and REACH Unaffected, though these statuses are unverified.

76PSB08S Quick Information

Product Type: DIP Switch
Canonical Name: Grayhill Inc. 76PSB08S DIP Switch
Subcategory: DIP Switch

76PSB08S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76PSB08S Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

76PSB08S Features

  • 8-position SPST piano DIP switch.
  • Rated for 150mA current and 30VDC.
  • Gold-plated copper alloy contacts.
  • Through-hole, right-angle mounting.
  • Operates from -40°C to 85°C.

76PSB08S Applications

  • Ideal for board-level configuration settings.
  • Used in electronic test equipment.
  • Suitable for industrial control systems.
  • Applicable in telecommunications hardware.

76PSB08S FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating for the 76PSB08S DIP switch?

The 76PSB08S DIP switch has a current rating of 150mA.

What is the voltage rating of the 76PSB08S?

The voltage rating for the 76PSB08S DIP switch is 30VDC.

What is the operating temperature range for this DIP switch?

The operating temperature range for the 76PSB08S is -40°C to 85°C.

How many positions does the 76PSB08S have?

The 76PSB08S DIP switch has 8 positions.

What type of actuator does the 76PSB08S feature?

The 76PSB08S features a piano-style actuator.

What is the mounting type for the 76PSB08S?

The 76PSB08S is designed for through-hole, right-angle mounting.
