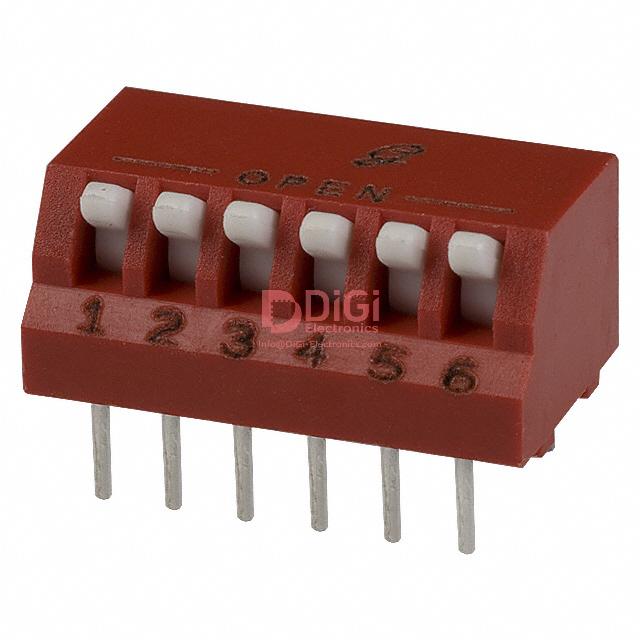

76PSB06 The Grayhill Inc. 76PSB06 is a Single Pole Single Throw (SPST) DIP switch with a piano actuator. It features 6 positions and is designed for through-hole, right-angle mounting.
Mfr Part #:

76PSB06

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 76PSB06 is a Single Pole Single Throw (SPST) DIP switch with a piano actuator. It features 6 positions and is designed for through-hole, right-angle mounting.
✓ Total Stock: 15 pcs
$ Price Range: $0.75

76PSB06 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

76PSB06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Body Material
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Height Above Board
Lead Spacing
Length
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

76PSB06 Description

Short technical summary and product information.

The Grayhill Inc. 76PSB06 is a Single Pole Single Throw (SPST) DIP switch. It features a piano actuator and offers 6 positions for configuration.



This switch is rated for a current of 150mA and a voltage of 30VDC. The contact material is copper alloy with a gold finish. It operates within a temperature range of -40°C to 85°C.



The mounting type is through-hole with a right-angle termination style, utilizing PC pins. The height above the board is 7.65mm, and the pitch is 2.54mm (0.100"). The switch is not washable and has a mechanical life of 2,000 cycles.



Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. The body material is thermoplastic.

76PSB06 Quick Information

Product Type: DIP Switch
Series: 76
Canonical Name: Grayhill Inc. 76PSB06 SPST DIP Switch
Subcategory: DIP Switch

76PSB06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76PSB06 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

76PSB06 Features

  • Single Pole Single Throw (SPST) circuit.
  • 6 positions for configuration.
  • 150mA current rating at 30VDC.
  • Piano actuator type.
  • Through-hole, right-angle mounting.

76PSB06 Applications

  • Ideal for board-level configuration.
  • Used in electronic test equipment.
  • Suitable for industrial control systems.
  • Applicable in telecommunications hardware.

76PSB06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit type of the 76PSB06 DIP switch?

The 76PSB06 DIP switch has a Single Pole Single Throw (SPST) circuit.

How many positions does the 76PSB06 DIP switch offer?

The 76PSB06 DIP switch offers 6 positions.

What is the current rating for the 76PSB06 DIP switch?

The 76PSB06 DIP switch has a current rating of 150mA.

What is the voltage rating of the 76PSB06 DIP switch?

The 76PSB06 DIP switch is rated for 30VDC.

What type of actuator does the 76PSB06 DIP switch use?

The 76PSB06 DIP switch uses a piano actuator.

What are the operating temperature limits for the 76PSB06 DIP switch?

The operating temperature range for the 76PSB06 DIP switch is -40°C to 85°C.

What is the RoHS status of the 76PSB06 DIP switch?

The RoHS status of the 76PSB06 DIP switch is RoHS3 Compliant.
