| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
161 pcs
|
161 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 1112 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

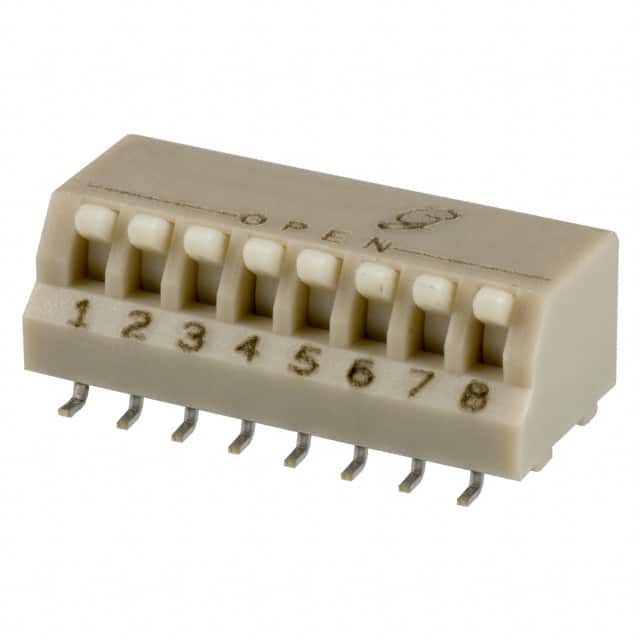

The Grayhill Inc. 76HPSB08GWRT is a component from the 76HP series, classified as a Piano DIP switch. This specific model offers 8 positions with SPST circuitry, suitable for various electronic applications.
Key electrical specifications include a voltage rating of 30VDC and a current rating of 150mA. The switch features gold-plated copper alloy contacts for reliable performance. It operates within a temperature range of -40°C to 85°C.
Designed for surface mounting, the 76HPSB08GWRT utilizes a gull wing termination style for secure board attachment. Its height above the board is 8.56mm. The actuator type is Piano, with a raised actuator level.
This component has a mechanical life rating of 2,000 actuations. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 30VDC.
The current rating is 150mA.
The operating temperature range is -40°C to 85°C.
It supports surface mount and right angle mounting.
The switch has 8 positions.
The circuitry is SPST (Single Pole Single Throw).
