| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

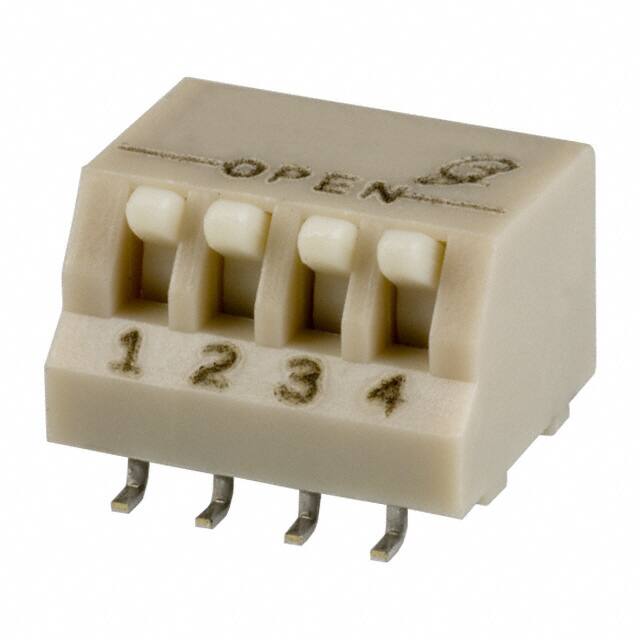

The Grayhill Inc. 76HPSB04GWRT is a Piano DIP switch designed for surface mount applications. It offers SPST circuitry and 4 positions, providing reliable switching capabilities.
This switch operates at a voltage rating of 30VDC and a current rating of 150mA. It features a gull wing termination style and a contact finish of gold over copper alloy. The actuator type is piano, with a raised level, and the height above the board is 8.56mm.
With a mechanical life cycle rating of 2,000 actuations, the 76HPSB04GWRT is suitable for applications requiring durability. It operates within a temperature range of -40°C to 85°C and is not washable. The pitch is 2.54mm (0.100").
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is designed for various electronic applications where a compact and reliable DIP switch is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 76HPSB04GWRT switch features SPST circuitry.
The 76HPSB04GWRT has 4 positions.
The 76HPSB04GWRT is a Surface Mount, Right Angle switch.
The 76HPSB04GWRT has a voltage rating of 30VDC.
The operating temperature range is -40°C to 85°C.
The mechanical life cycle is 2,000 actuations.
