| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,317 pcs
|
2317 pcs | On Request | 1 | On Request | On Request | 1833+ | On Request | On Request | |
|
461 pcs
|
461 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

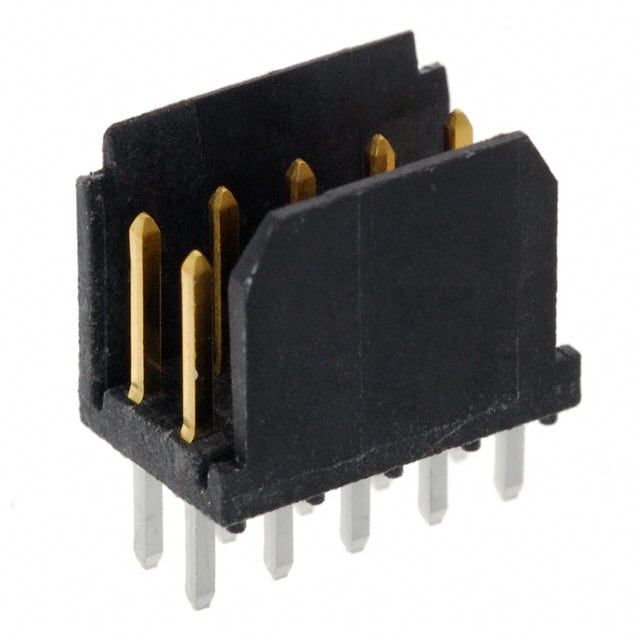

The 76385-305LF is a 10-position, 2-row, through-hole header from Amphenol ICC. It features square male pins with a 2.54mm pitch and row spacing, contacts made of copper alloy with a tin finish (0.76µm thickness). The overall contact length is 10.44mm, and the insulation height is 9.35mm. The insulator is black thermoplastic, glass filled, with a UL94 V-0 flammability rating.
This header has a shrouded 2-wall design with a friction lock fastening type, making it suitable for board-to-cable/wire applications requiring secure mating. It is rated for 3A continuous current and operates over a temperature range of -40°C to 125°C. Termination is via solder to through-hole mounting.
Designed for reliable connections in moderate current and temperature environments, this header is suitable for use in industrial control, consumer electronics, and automotive applications where a secure wire-to-board interface is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.73 | $1.73 |
| 10+ | $1.47 | $1.47 |
| 100+ | $1.25 | $1.25 |
| 500+ | $1.11 | $1.11 |
| 1,000+ | $1.06 | $1.06 |
| 5,000+ | $0.95 | $0.95 |
| 10,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded.
2.54mm (0.100").
3A.
Through hole.
-40°C to 125°C.
Tin with 0.76µm thickness.
Thermoplastic, glass filled, UL94 V-0 rated.
