76347-302LF
Amphenol ICC

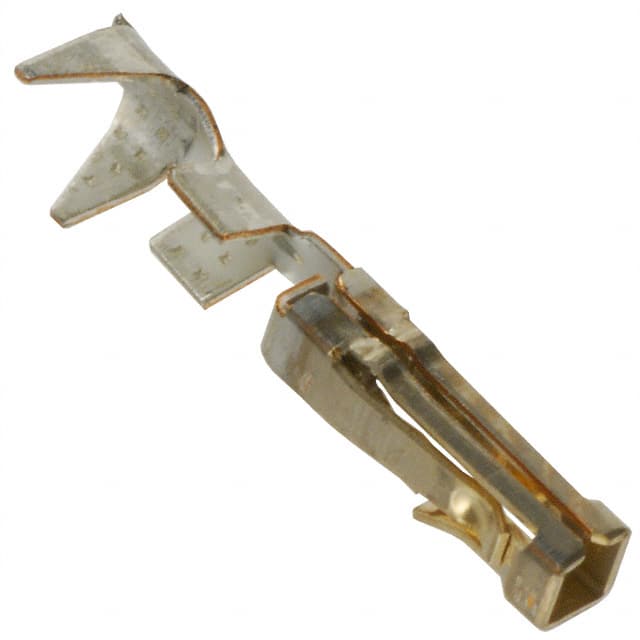

Amphenol ICC 76347-302LF is a socket contact for 22-30 AWG wire with crimp termination and gold plating.
Ideal for rectangular connector systems requiring a durable signal connection.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,000 pcs
|
11000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Termination | |
| Lead Style | |
| Pin or Socket | |
| Wire Gauge |
The Amphenol ICC 76357-301LF is a socket contact designed for use in rectangular connector systems. It accommodates wire gauges from 22 to 30 AWG and features a crimp termination for secure and reliable connections. The contact is plated with gold to a thickness of 30 microinches (0.76 micrometers), providing excellent corrosion resistance and durability for repeated mating cycles.
This crimp contact is intended for field-installable or production wire harnessing, allowing for custom cable assembly. The socket design ensures proper mating with corresponding pin contacts in rectangular connector housings. The gold finish enhances conductivity and reduces contact resistance over the life of the connection.
As a discrete contact, it is typically ordered separately and inserted into connector housings. No mounting type is specified, as the contact is retained within the housing via locking features. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited), though these compliance values are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
| 10+ | $0.24 | $0.24 |
| 25+ | $0.22 | $0.22 |
| 50+ | $0.21 | $0.21 |
| 100+ | $0.20 | $0.20 |
| 250+ | $0.19 | $0.19 |
| 500+ | $0.18 | $0.18 |
| 1,000+ | $0.17 | $0.17 |
| 3,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22-30 AWG.
Crimp.
Gold, 30µin (0.76µm) thickness.
RoHS3 Compliant (unverified).
MSL 1 Unlimited (unverified).
